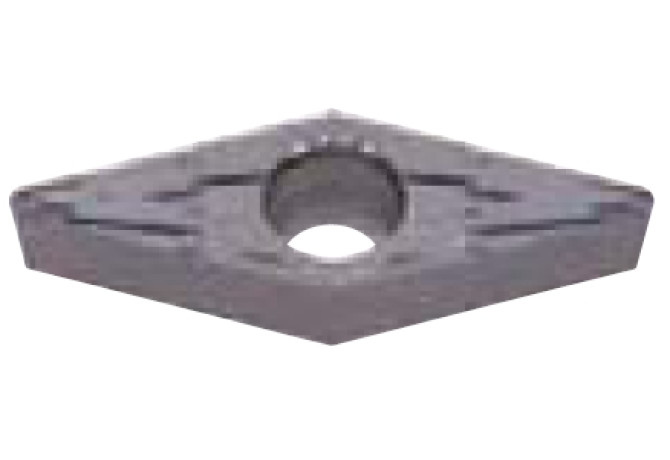

VCMT160408-PSF T9125

Артикул: 6864964

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

BN Face land width

0.12 mm

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

PSF

CECC Cutting edge condition code

T - Chamfered

COATN Coating / Покрытие

MT-CVD

COMPC Company code

TT - Tungaloy

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.76 mm

Delivery state valid from

4/1/2013

DIN

VC1604 3N

EPSR Insert included angle

35 Degree

FamilyProducts

insert for turning VCMT, PSF breaker

GAN Insert rake angle

20 Degree

GRD2ND Standard designation of the grade 2nd application

HC-P30

GRDMFG Grade manufacturers designation

T9125

GRDPRIO Standard designation of the grade main application

HC-P20

IC Inscribed circle diameter

9.525 mm

ID Technical product number

6864964

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

VC1604 3N

Materials

Name Identifying order number

VCMT160408-PSF T9125

RE Corner radius

0.8 mm

S Insert thickness

4.4 mm

S1 Insert thickness total

4.4 mm

STDDES Standard designation

VCMT160408

STDDESAnsi Standard designation ANSI

VCMT332

TCINS Tolerance class insert

Working process

DDA - External turning
