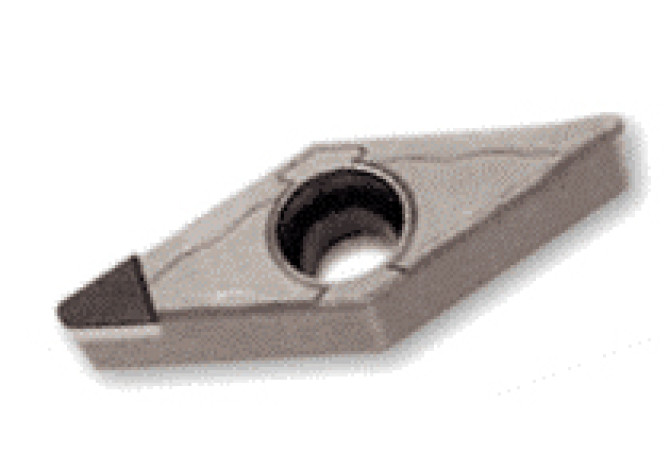

VCMT 160408T IB55

Артикул: 5700651

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

T - Chamfered

COMPC Company code

IS - Iscar

D1 Fixing hole diameter

4.4 mm

Delivery state valid from

4/1/2022

DIN

VC1604083N

EPSR Insert included angle

35 Degree

FamilyProducts

35° Rhombic Single Brazed Tip Corner Inserts for Finishing Cast Iron

GRDMFG Grade manufacturers designation

IB55

IC Inscribed circle diameter

9.52 mm

ID Technical product number

5700651

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$VC1604083NB$$08

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

16.6 mm

LE Cutting edge effective length

4 mm

LOC-03 ISO

ISO$VC1604083NB$$08

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

VC1604083N

Name Identifying order number

VCMT 160408T IB55

RE Corner radius

0.8 mm

S Insert thickness

4.76 mm

TCE Tipped cutting edge code

Working process

No working processes available

WT Weight of item

0.01 kg
