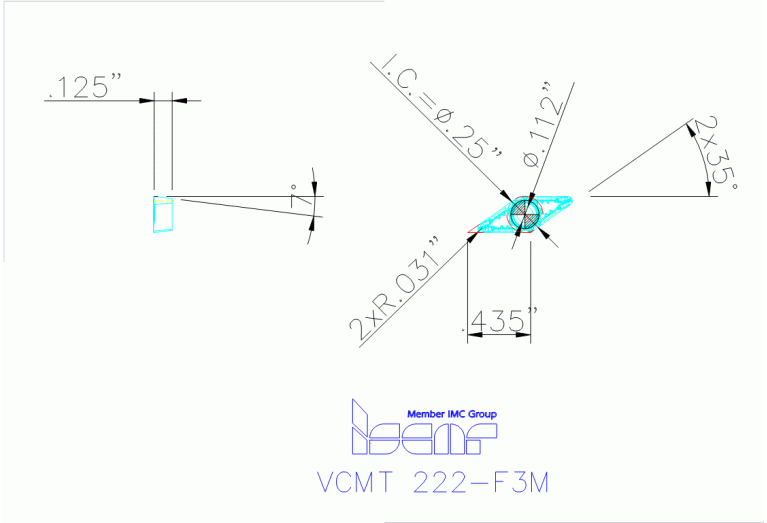

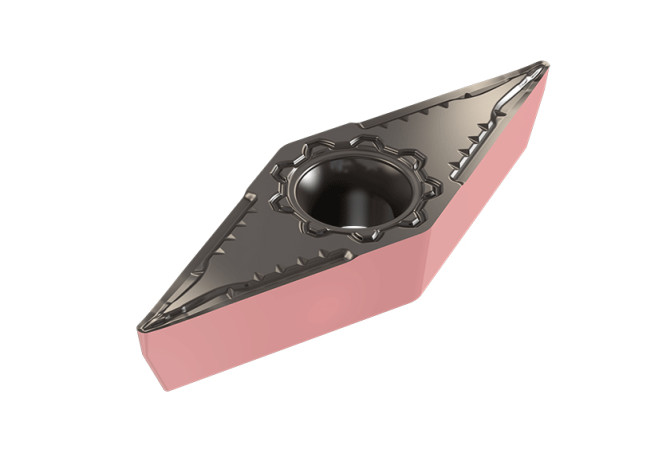

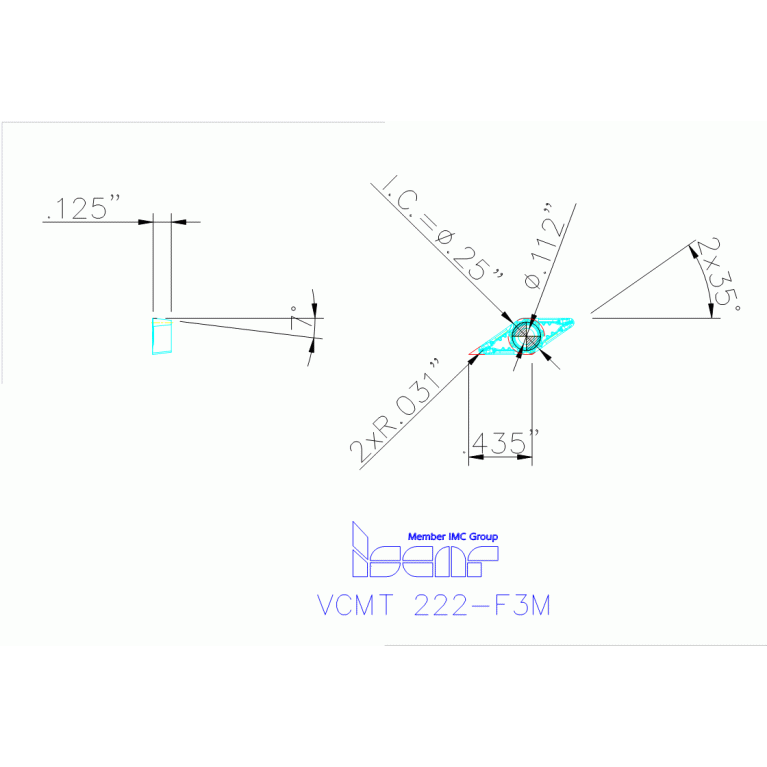

VCMT 110308-F3M IC806

Артикул: 5568839

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

F3M

COATN Coating / Покрытие

AlTiN "SUMO TEC"

COMPC Company code

IS - Iscar

D1 Fixing hole diameter

2.85 mm

Delivery state valid from

4/1/2022

DIN

VC1103083N

EPSR Insert included angle

35 Degree

FamilyProducts

35° Rhombic Positive Flank Inserts for Stainless Steel Finishing Applications

GRDMFG Grade manufacturers designation

IC806

IC Inscribed circle diameter

6.35 mm

ID Technical product number

5568839

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$VC1103083NB$$08

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

11.1 mm

LOC-03 ISO

ISO$VC1103083NB$$08

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

VC1103083N

Name Identifying order number

VCMT 110308-F3M IC806

RE Corner radius

0.8 mm

S Insert thickness

3.18 mm

Working process

No working processes available
