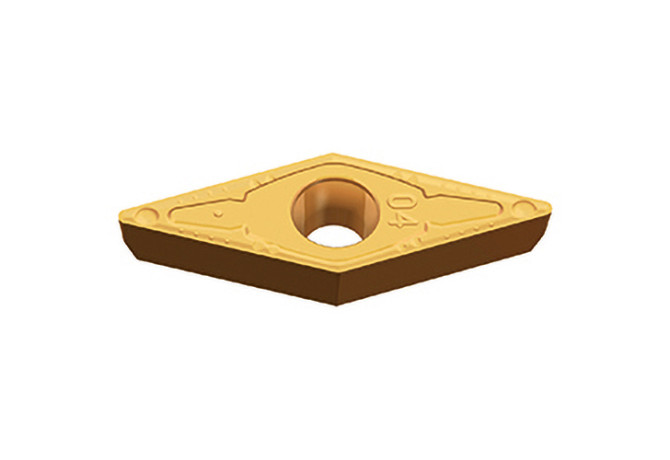

VCMT 080202 FM TT8125B

Артикул: 6212877

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

TiCN+Al2O3+TiN

COMPC Company code

IL - Ingersoll

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

2.4 mm

Delivery state valid from

7/1/2024

DIN

VC0802023N

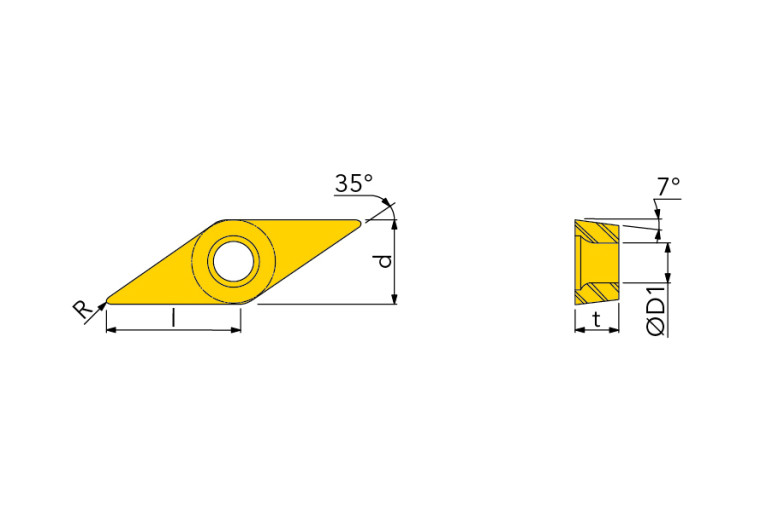

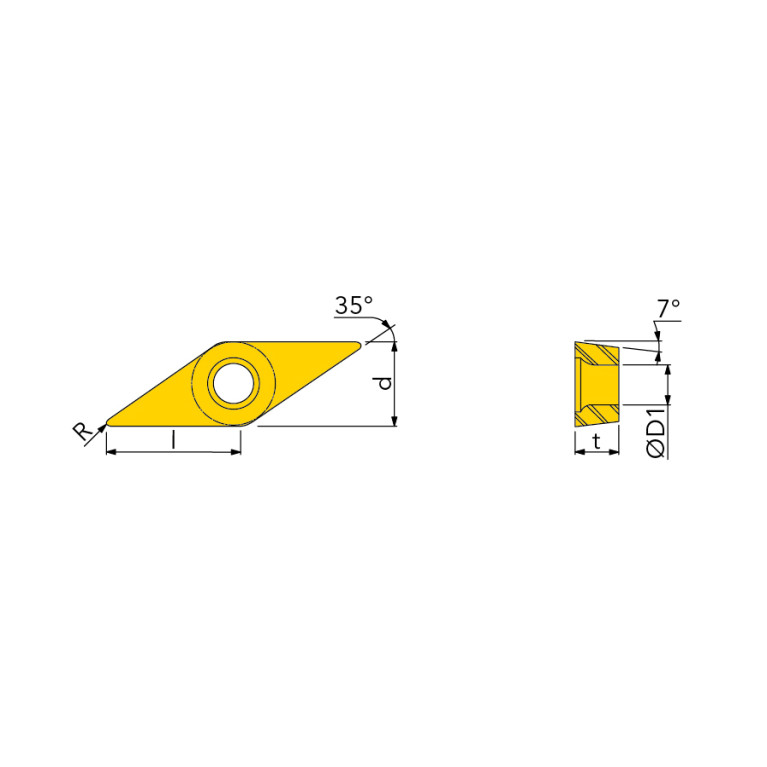

EPSR Insert included angle

35 Degree

FamilyProducts

insert, Positive 35° Insert - 7° clearance for semi finishing and medium machining

GRDMFG Grade manufacturers designation

TT8125B

GRDPRIO Standard designation of the grade main application

P15-P30

IC Inscribed circle diameter

4.76 mm

ID Technical product number

6212877

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

8.3 mm

LE Cutting edge effective length

7.8 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

VC0802023N

Materials

MIID Master insert identification

VCMT080202 TT8125B

Name Identifying order number

VCMT 080202 FM TT8125B

RE Corner radius

0.2 mm

S Insert thickness

2.38 mm

S1 Insert thickness total

2.38 mm

STDDES Standard designation

VCMT080202

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available
