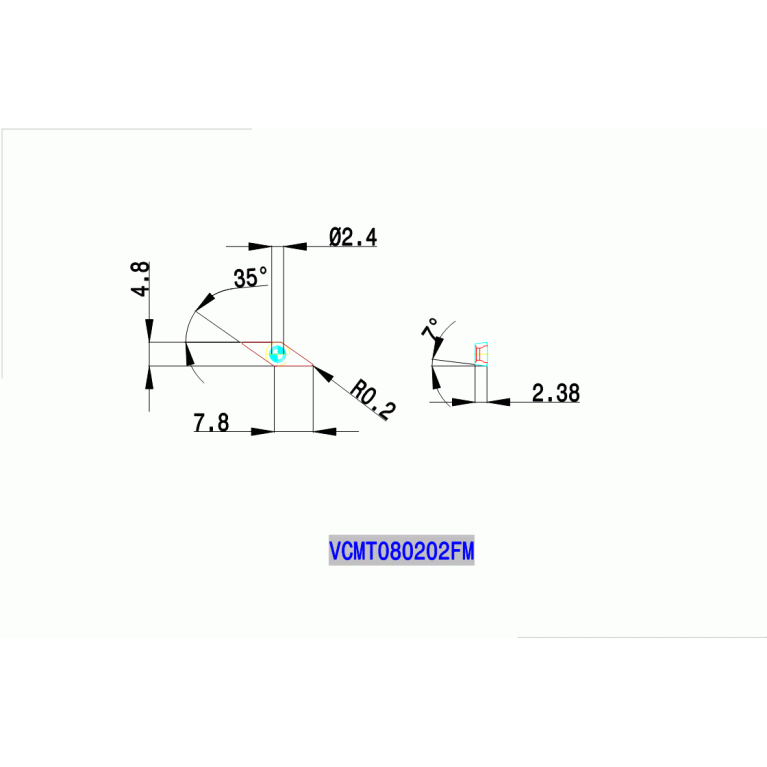

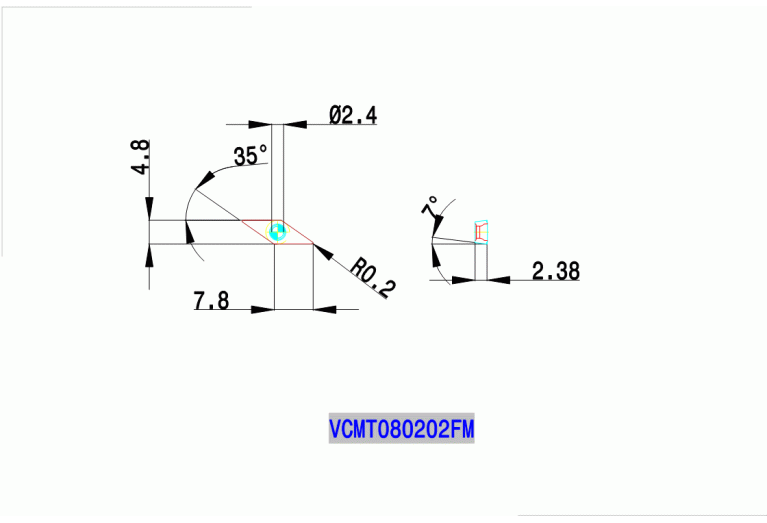

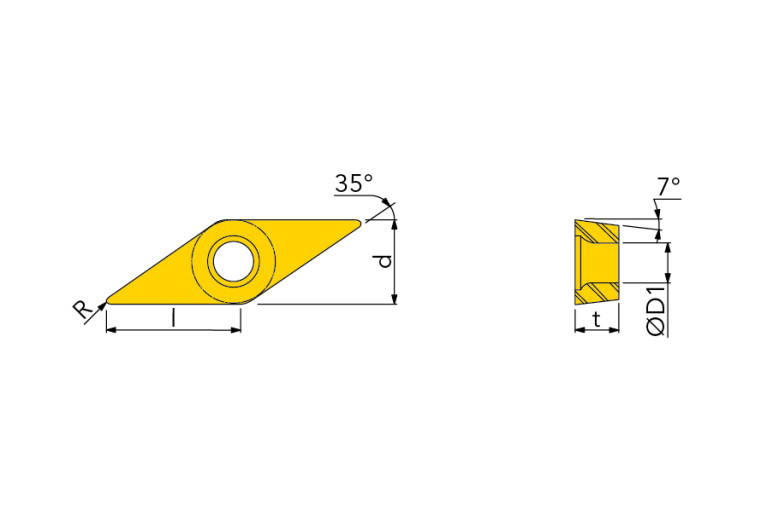

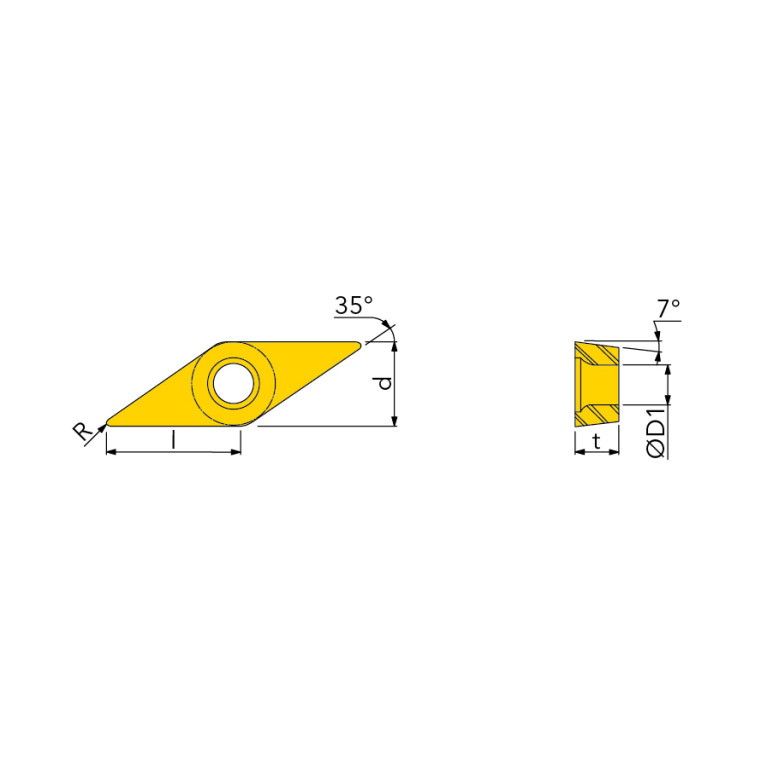

VCMT 080202 FM TT5080

Артикул: 6155832

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

TiAlN+TiN

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

2.4 mm

Delivery state

LL - Stock limited

DIN

VC0802023N

EPSR Insert included angle

35 Degree

FamilyProducts

insert, Positive 35° Insert - 7° clearance for semi finishing and medium machining

GRD2ND Standard designation of the grade 2nd application

M05-M25

GRD3RD Standard designation of the grade 3rd application

S05-S25

GRDMFG Grade manufacturers designation

TT5080

IC Inscribed circle diameter

4.76 mm

ID Technical product number

6155832

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

7.8 mm

LE Cutting edge effective length

1 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

VC0802023N

Name Identifying order number

VCMT 080202 FM TT5080

RE Corner radius

0.2 mm

S Insert thickness

2.38 mm

S1 Insert thickness total

2.38 mm

STDDES Standard designation

VCMT080202

TCINS Tolerance class insert

Working process

No working processes available
