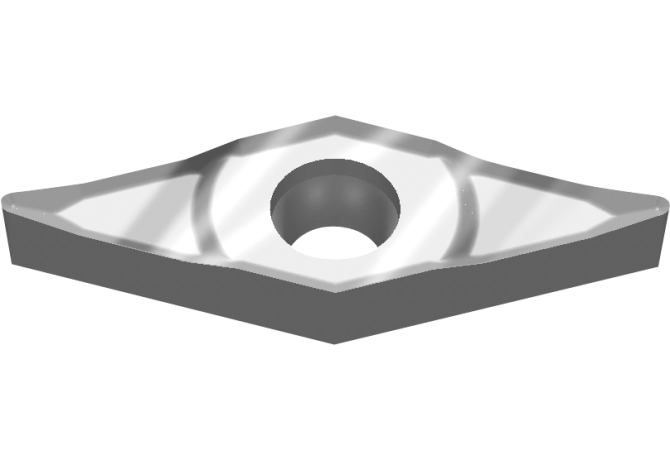

VCGX160404-LH YBG202

Артикул: VCGX160404-LH YBG202

В наличии

В корзину

Описание

Характеристики

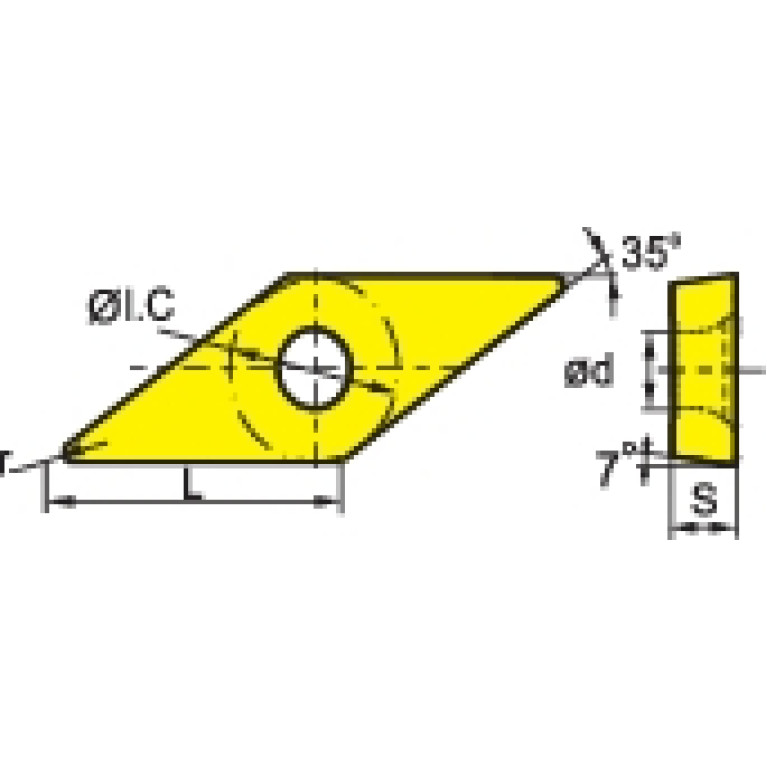

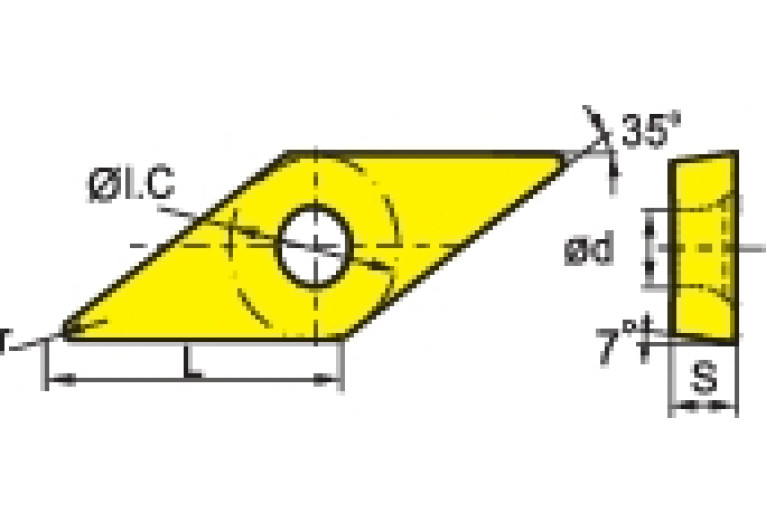

AN Clearance angle major

7 Degree

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

nc-TiAlN

COMPC Company code

ZCC - ZCC Cutting Tools

D1 Fixing hole diameter

4.4 mm

Delivery state valid from

0.092 kg

DIN

VC1604043N

EPSR Insert included angle

35 Degree

FamilyProducts

VC** turning/milling insert

GRD2ND Standard designation of the grade 2nd application

M10-M25

GRDMFG Grade manufacturers designation

YBG202

GRDPRIO Standard designation of the grade main application

P10-P30

IC Inscribed circle diameter

9.525 mm

ID Identifying order number

VCGX160404-LH YBG202

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

16.6 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

VC1604043N

RE Corner radius

0.4 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

TCINS Tolerance class insert

Working process

No working processes available
