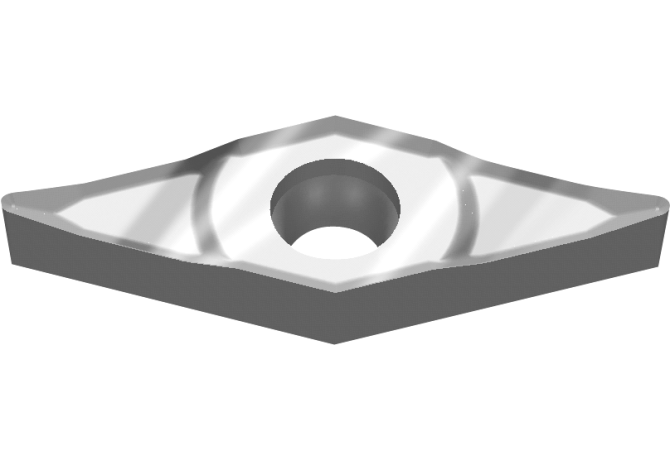

VCGX110301-LH YD101

Артикул: VCGX110301-LH YD101

В наличии

В корзину

Описание

Характеристики

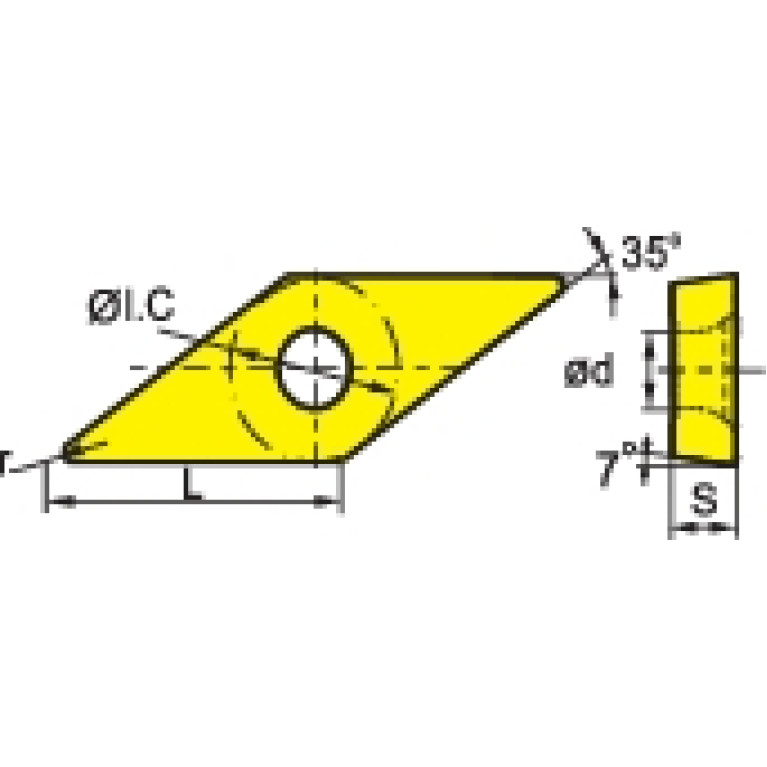

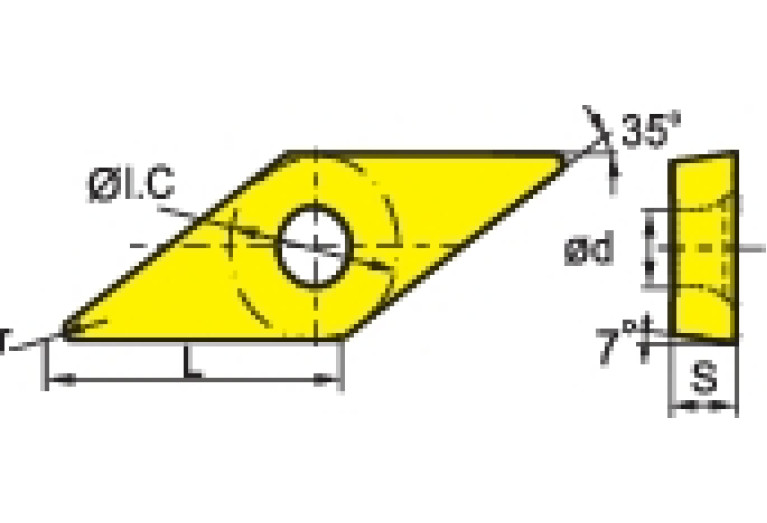

AN Clearance angle major

7 Degree

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

ohne

COMPC Company code

ZCC - ZCC Cutting Tools

D1 Fixing hole diameter

2.8 mm

Delivery state valid from

0.0328 kg

DIN

VC1103013N

EPSR Insert included angle

35 Degree

FamilyProducts

VC** turning/milling insert

GRD2ND Standard designation of the grade 2nd application

S5-S15

GRDMFG Grade manufacturers designation

YD101

GRDPRIO Standard designation of the grade main application

N5-N30

IC Inscribed circle diameter

6.35 mm

ID Identifying order number

VCGX110301-LH YD101

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

11 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

VC1103013N

RE Corner radius

0.1 mm

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

TCINS Tolerance class insert

Working process

No working processes available
