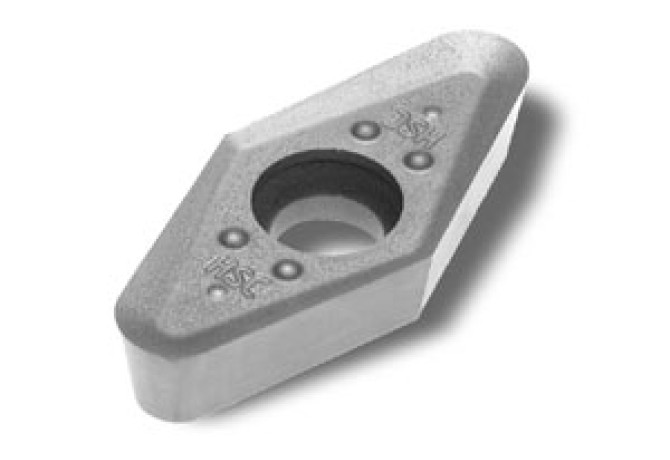

VCGX 220530FN-27MP H216T

Артикул: 304084

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

27MP

CECC Cutting edge condition code

F - Sharpedged

COMPC Company code

CE - Ceratizit

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5.5 mm

DIN

VC2205307N

EPSR Insert included angle

35 Degree

FamilyProducts

carbide milling insert

GRD2ND Standard designation of the grade 2nd application

HW-N15

GRDMFG Grade manufacturers designation

H216T

GRDPRIO Standard designation of the grade main application

HW-K15

IC Inscribed circle diameter

12.7 mm

ID Technical product number

304084

IFS Insert mounting style code

7 - Prismatic clamping, concave

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

22.1 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

VC2205307N

Name Identifying order number

VCGX 220530FN-27MP H216T

RE Corner radius

3 mm

S Insert thickness

5.56 mm

S1 Insert thickness total

5.56 mm

STDDES Standard designation

VCGX220530FN-27MPH

TCINS Tolerance class insert

Working process

FEC - Square shoulder milling
