VCGW160412E01N-0AA-FU430
VCGW160412E01N-0AA-FU430
Артикул:
VCGW160412 E01 N-0AA-FU430
В наличии
Характеристики

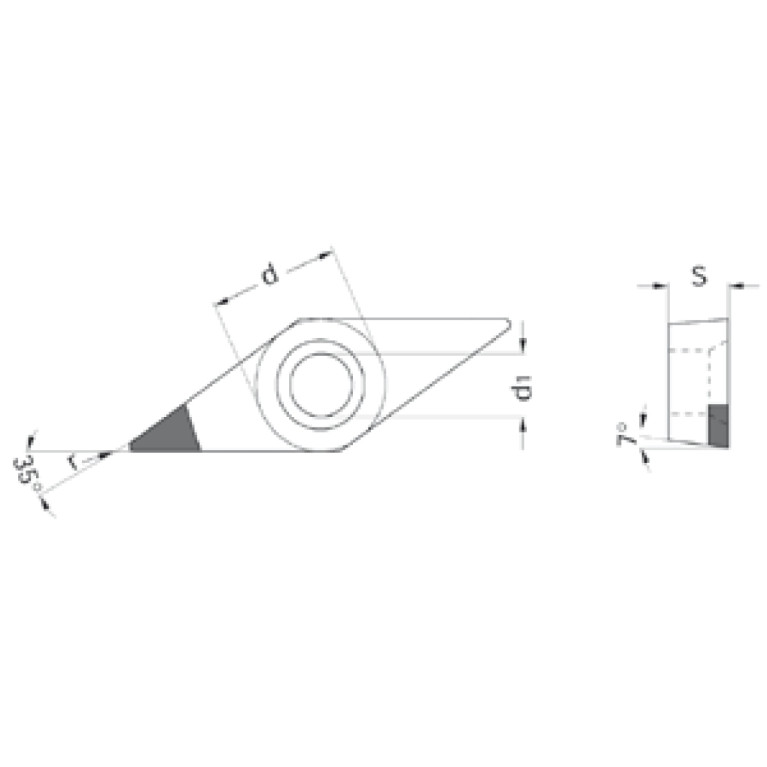

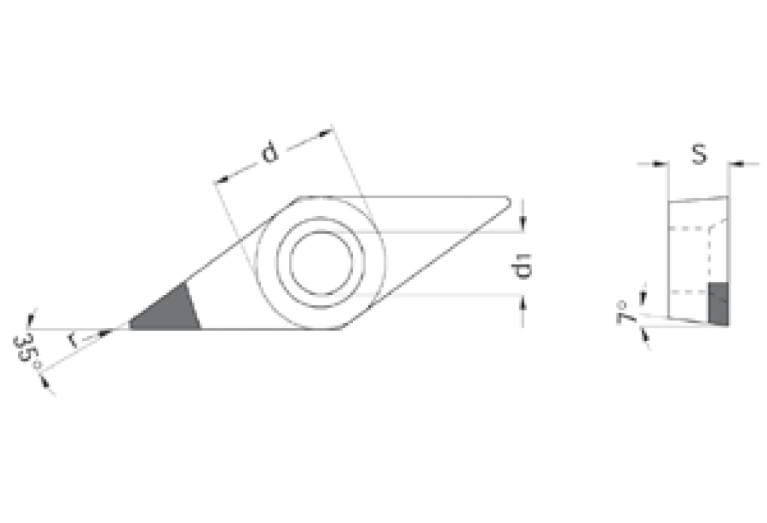

AN Clearance angle major
7 Degree
CB Chip breaker face count
0 - Without chip breaker
CBMD Chip breaker manufacturers designation
0AA
CECC Cutting edge condition code
E - Rounded
COMPC Company code
MP - Mapal
CSP Coolant supply property
0 - Without coolant supply
D1 Fixing hole diameter
4.4 mm
Delivery state valid from
7/10/2012
DIN
VC1604 3N
EPSR Insert included angle
35 Degree
FamilyProducts

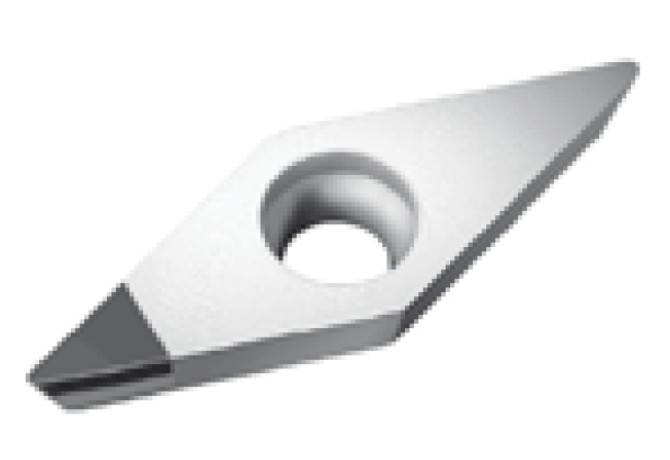

indexable CBN insert VCGW type
FLSC Face land size code
01
GRDMFG Grade manufacturers designation
FU430
IC Inscribed circle diameter
9.52 mm
ID Technical product number
VCGW160412 E01 N-0AA-FU430
IFS Insert mounting style code
3 - Counter bore for screws with taper angle from 40° to 60°
IH Insert hand
N - Neutral
Interface codes
J6 /
ISISO ISO property
0
ISYC Subclass
201-03 - Rhombic insert
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
VC1604 3N
Name Identifying order number
VCGW160412E01N-0AA-FU430
RE Corner radius
1.2 mm
S Insert thickness
4.76 mm
S1 Insert thickness total
4.76 mm
STDDES Standard designation
VCGW160412
STDDESAnsi Standard designation ANSI
VCGW333
TCE Tipped cutting edge code
A
TCINS Tolerance class insert
G
Working process
DDA - External turning,DDI - Internal turning
