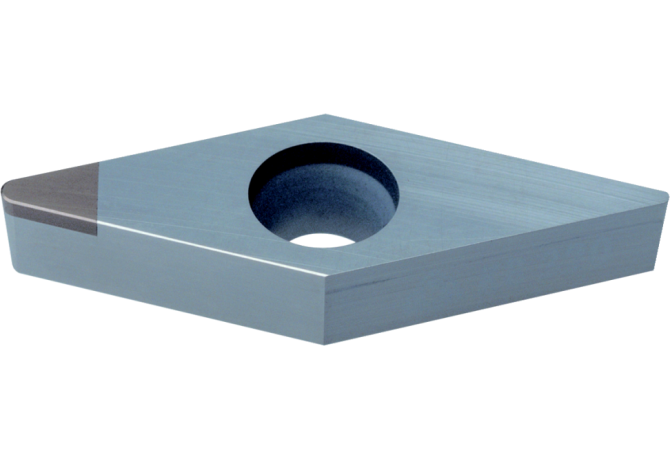

VCGW160408 KB320

Артикул: 6-01-029030

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

ohne

COMPC Company code

KOR - Korloy

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.4 mm

Delivery state valid from

6/5/2014

DIN

VC1604 3N

EPSR Insert included angle

35 Degree

FamilyProducts

CBN Regrindable (Positive)

GRDMFG Grade manufacturers designation

KB320

GRDPRIO Standard designation of the grade main application

CBN

IC Inscribed circle diameter

9.525 mm

ID Technical product number

6-01-029030

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

16.6 mm

LE Cutting edge effective length

4.4 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

VC1604 3N

Name Identifying order number

VCGW160408 KB320

RE Corner radius

0.8 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

VCGW160408

STDDESAnsi Standard designation ANSI

VCGW332

TCINS Tolerance class insert

Working process

No working processes available
