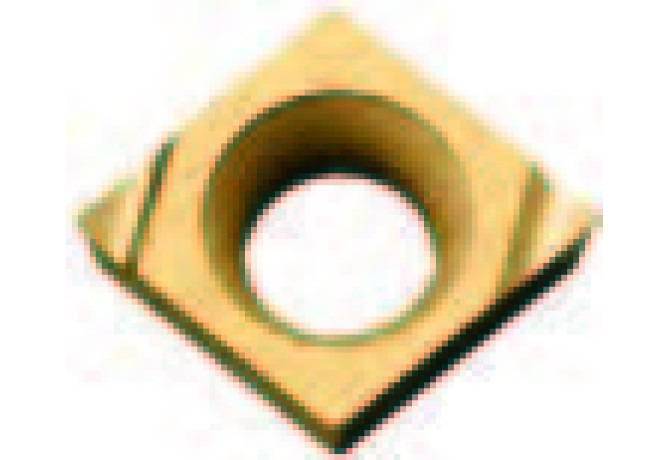

CCET040104ML-F PV730

Артикул: TLP00006

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

COATN Coating / Покрытие

MEGACOAT NANO Cermet

COMPC Company code

KYO - Kyocera

CRCLMFG Chip removal class mfg

P25

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

2.3 mm

Delivery state valid from

2/1/2022

EPSR Insert included angle

80 Degree

FamilyProducts

KYOCERA Indexable insert for Turning

GRDMFG Grade manufacturers designation

PV730

GRDPRIO Standard designation of the grade main application

IC Inscribed circle diameter

4.3 mm

ID Technical product number

TLP00006

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

L - Left

Interface codes

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

4.366 mm

LE Cutting edge effective length

1.7 mm

Name Identifying order number

CCET040104ML-F PV730

RE Corner radius

0.4 mm

S Insert thickness

1.8 mm

TCINS Tolerance class insert

Working process

No working processes available
