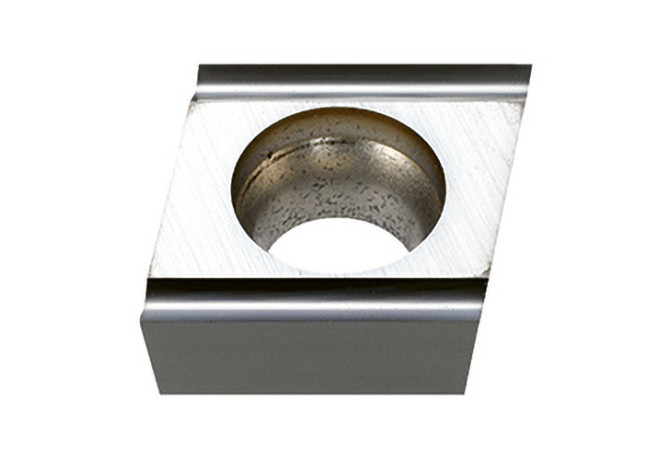

CCET 09T3003 R-GW TT9020

Артикул: 5517502

В наличии

В корзину

Описание

Характеристики

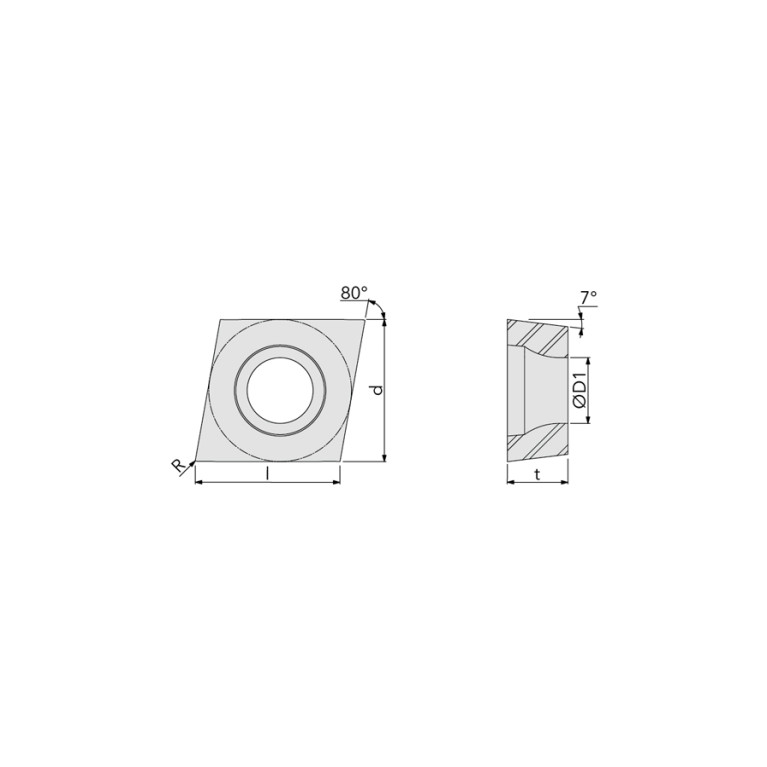

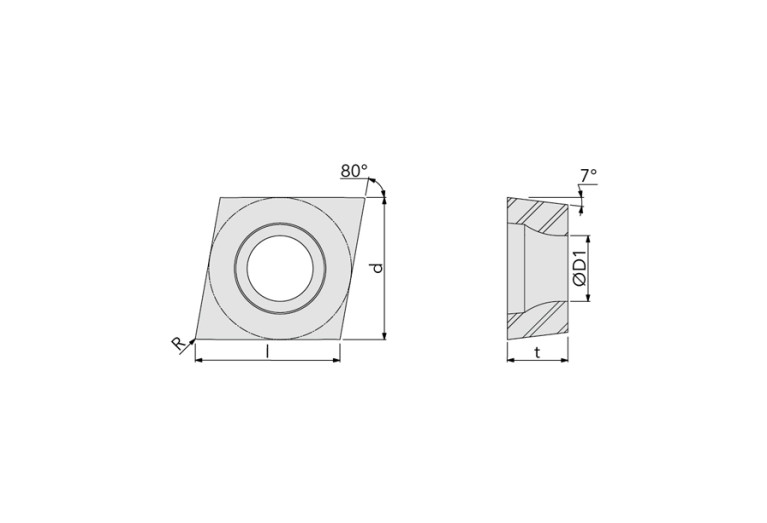

AN Clearance angle major

7 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

TiCN

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

4.4 mm

Delivery state

LL - Stock limited

DIN

CC09T3003R

EPSR Insert included angle

80 Degree

FamilyProducts

insert, Chipbreaker, positive 7° clearance 80° rhombic inserts with wiper geometry for small parts

GRD2ND Standard designation of the grade 2nd application

M20-M40

GRDMFG Grade manufacturers designation

TT9020

GRDPRIO Standard designation of the grade main application

P20-P40

IC Inscribed circle diameter

9.52 mm

ID Technical product number

5517502

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

9.6 mm

LE Cutting edge effective length

0.3 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

CC09T3003R

Name Identifying order number

CCET 09T3003 R-GW TT9020

RE Corner radius

0.03 mm

S Insert thickness

3.97 mm

S1 Insert thickness total

3.97 mm

STDDES Standard designation

CCET09T3003R

STDDESAnsi Standard designation ANSI

CCET32.503R

TCINS Tolerance class insert

Working process

No working processes available
