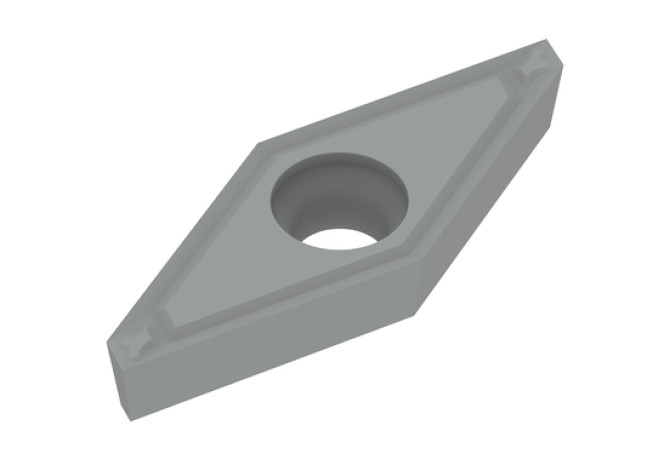

72668501

Артикул: 72668501

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CBMD Chip breaker manufacturers designation

-FN

CECC Cutting edge condition code

F - Sharpedged

COATN Coating / Покрытие

ohne

COMPC Company code

CE - Ceratizit

D1 Fixing hole diameter

2.9 mm

EPSR Insert included angle

35 Degree

FamilyProducts

HM-DREHWENDEPLATTE

GRD2ND Standard designation of the grade 2nd application

HT-K15

GRDPRIO Standard designation of the grade main application

HT-P15

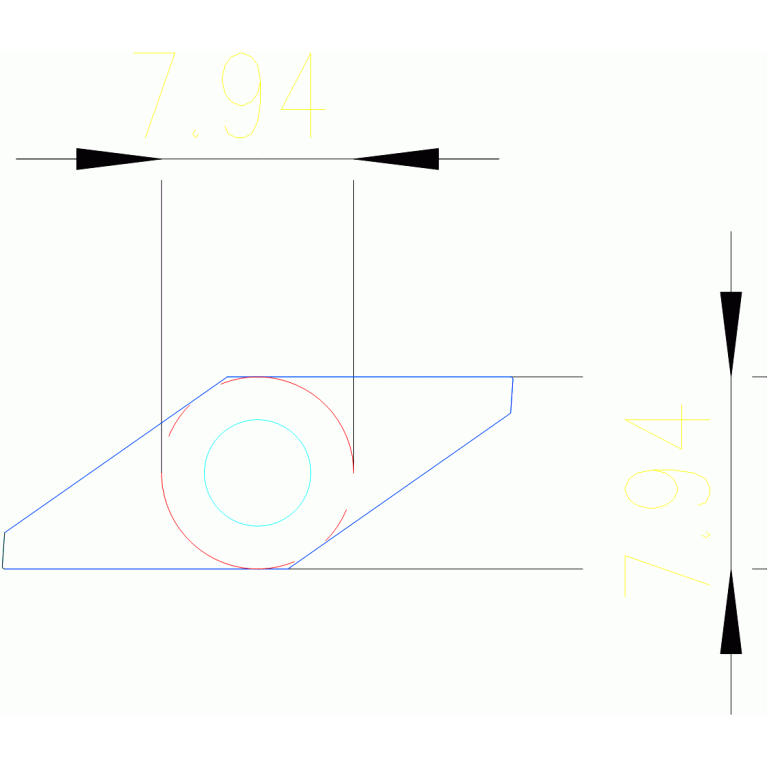

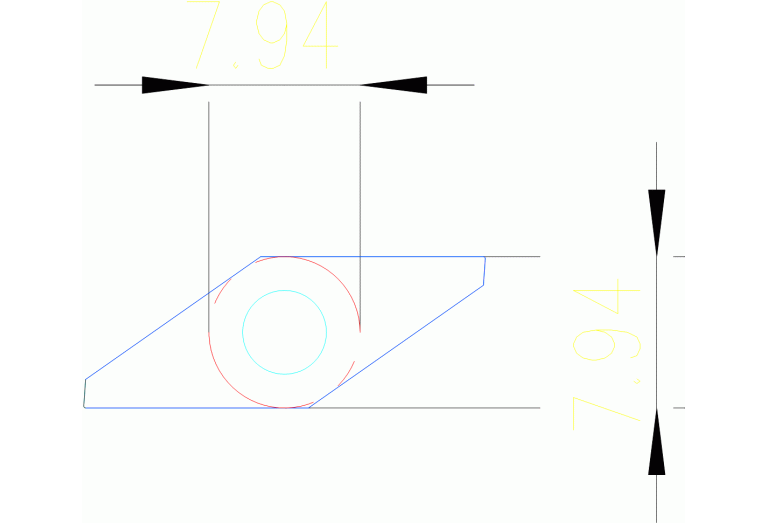

IC Inscribed circle diameter

7.94 mm

IH Insert hand

N - Neutral

Interface codes

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

13.84 mm

Name Identifying order number

72668501

RE Corner radius

0.1 mm

S Insert thickness

3.18 mm

TCINS Tolerance class insert

Working process

No working processes available
