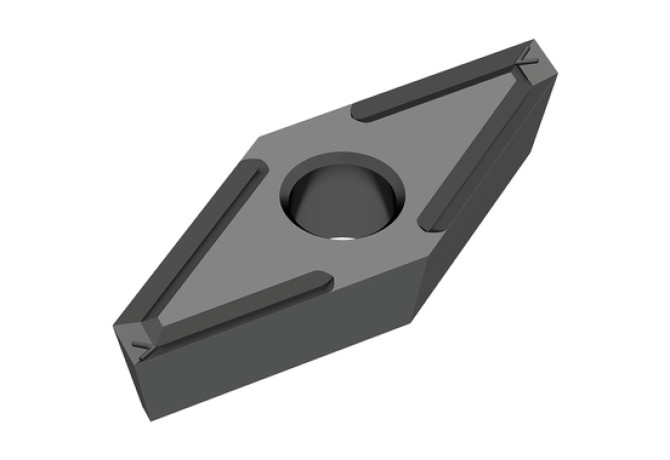

72402028

Артикул: 72402028

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

BS Wiper edge length

1.6 mm

CBMD Chip breaker manufacturers designation

-FR

CECC Cutting edge condition code

F - Sharpedged

COATN Coating / Покрытие

WUU7610

COMPC Company code

CE - Ceratizit

D1 Fixing hole diameter

4.4 mm

EPSR Insert included angle

35 Degree

FamilyProducts

HM-DREHWENDEPLATTE

GRD2ND Standard designation of the grade 2nd application

HW-S15

GRDPRIO Standard designation of the grade main application

HW-N10

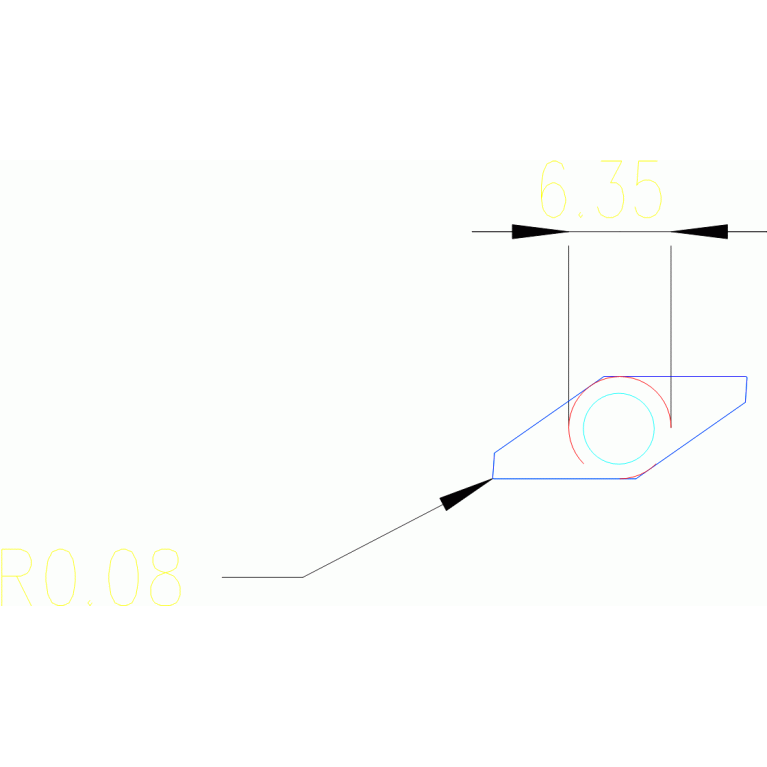

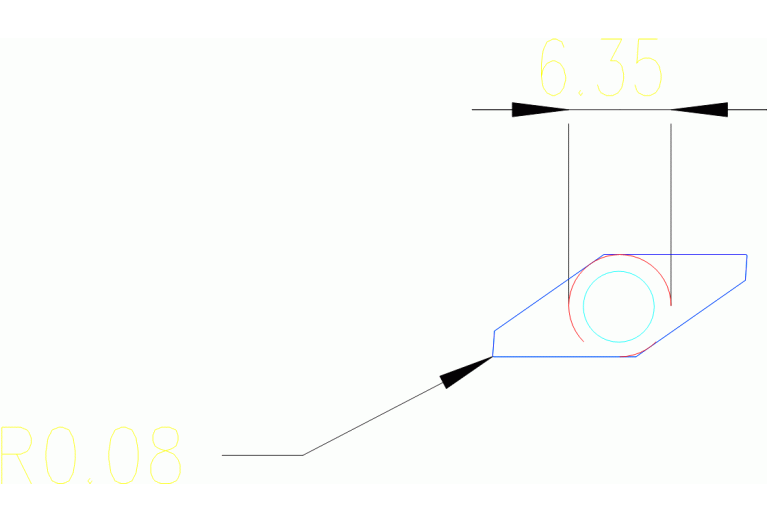

IC Inscribed circle diameter

6.35 mm

IH Insert hand

R - Right

Interface codes

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

10 mm

LE Cutting edge effective length

4.5 mm

Name Identifying order number

72402028

RE Corner radius

0.08 mm

S Insert thickness

3.18 mm

TCINS Tolerance class insert

Working process

No working processes available
