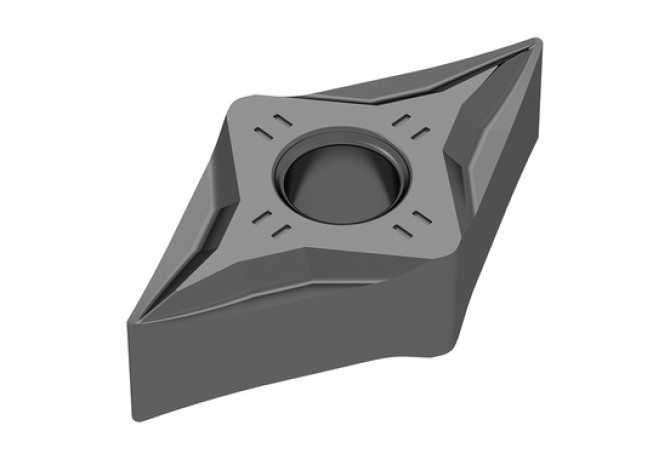

7240133800

Артикул: 7240133800

В наличии

В корзину

Описание

Характеристики

CBMD Chip breaker manufacturers designation

-F32

CECC Cutting edge condition code

F - Sharpedged

COATN Coating / Покрытие

WUU7620

COMPC Company code

CE - Ceratizit

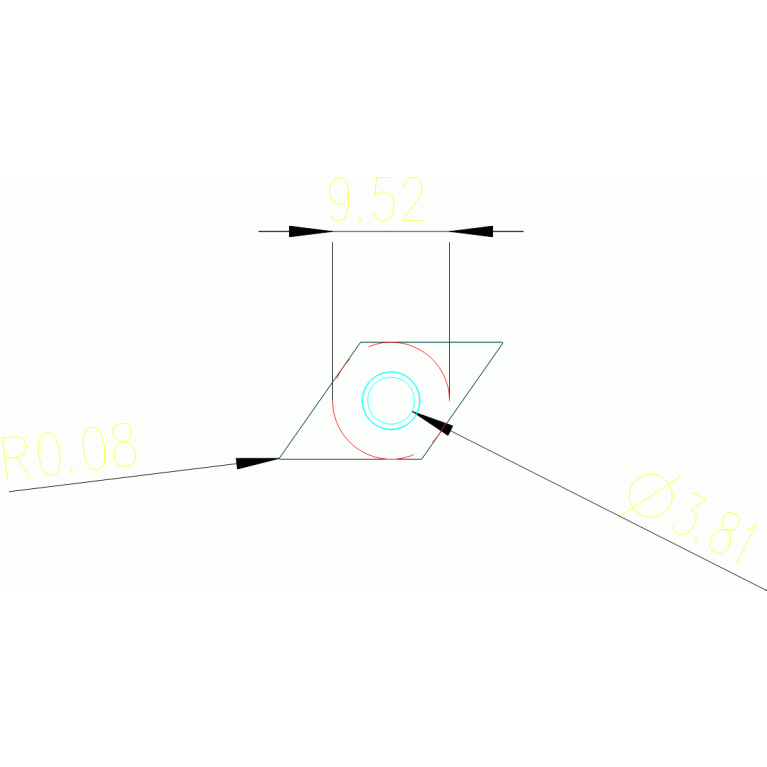

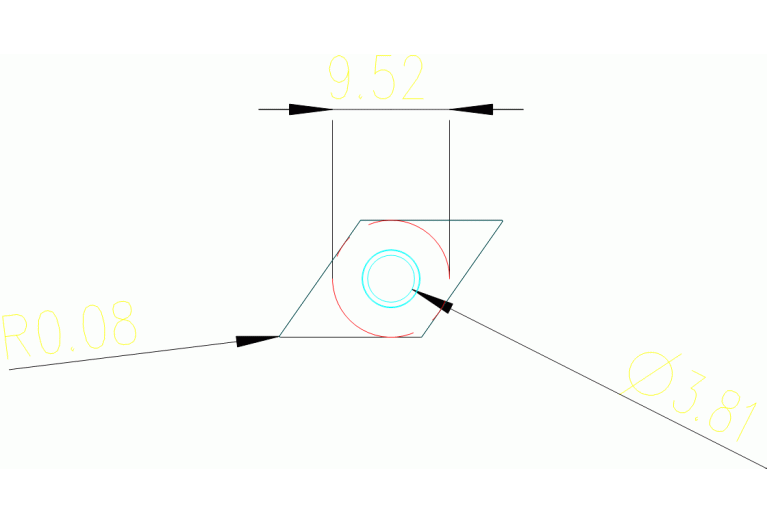

D1 Fixing hole diameter

3.81 mm

EPSR Insert included angle

55 Degree

FamilyProducts

VERTI CLAMP HM-DREHWENDEPLATTE

GRD2ND Standard designation of the grade 2nd application

HC-M15

GRD3RD Standard designation of the grade 3rd application

HC-K20

GRDPRIO Standard designation of the grade main application

HC-P20

IC Inscribed circle diameter

9.52 mm

IH Insert hand

N - Neutral

Interface codes

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

11.6 mm

Name Identifying order number

7240133800

RE Corner radius

0.08 mm

S Insert thickness

4.76 mm

TCINS Tolerance class insert

Working process

No working processes available
