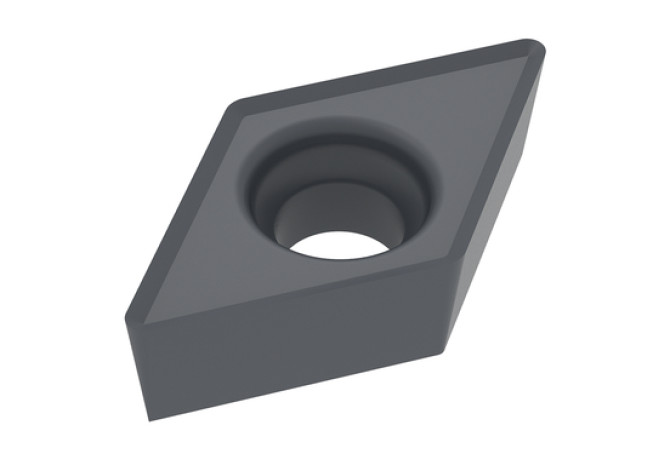

72400765

Артикул: 72400765

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CBMD Chip breaker manufacturers designation

-FM37

CECC Cutting edge condition code

F - Sharpedged

COATN Coating / Покрытие

WPU7610

COMPC Company code

CE - Ceratizit

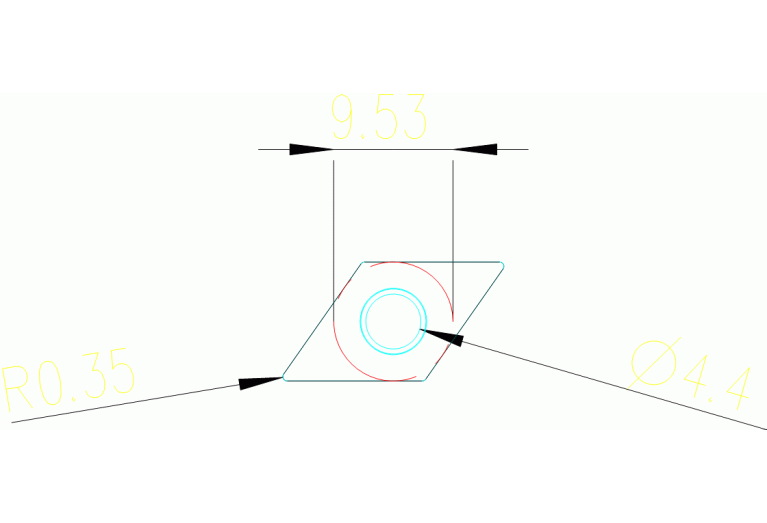

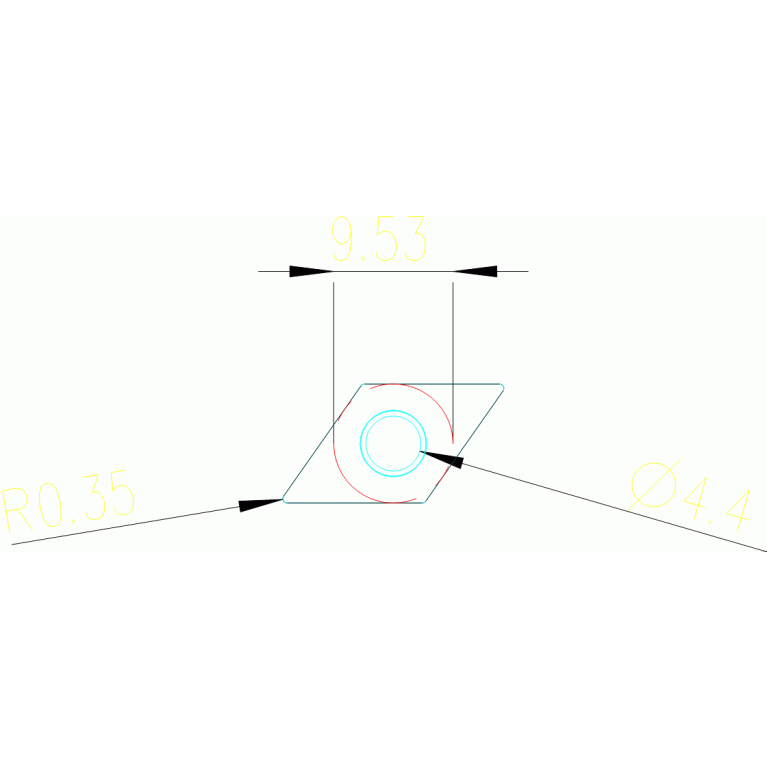

D1 Fixing hole diameter

4.4 mm

EPSR Insert included angle

55 Degree

FamilyProducts

HM-DREHWENDEPLATTE

GRD2ND Standard designation of the grade 2nd application

HC-K10

GRD3RD Standard designation of the grade 3rd application

HC-N10

GRDPRIO Standard designation of the grade main application

HC-M10

IC Inscribed circle diameter

9.52 mm

IH Insert hand

N - Neutral

Interface codes

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

11.6 mm

LE Cutting edge effective length

7.2 mm

Name Identifying order number

72400765

RE Corner radius

0.35 mm

S Insert thickness

3.97 mm

TCINS Tolerance class insert

Working process

No working processes available
