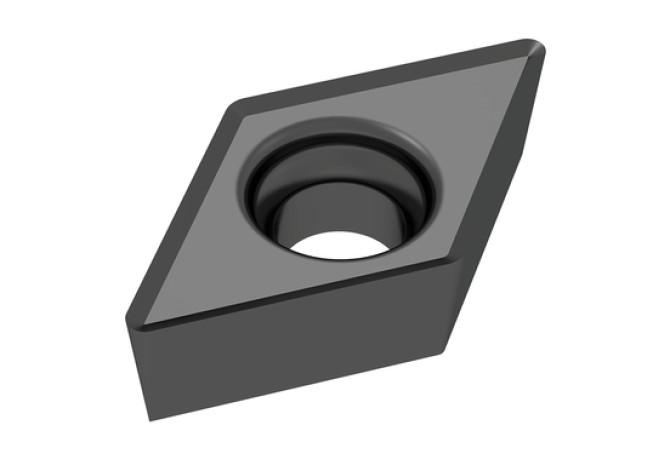

72400035

Артикул: 72400035

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CBMD Chip breaker manufacturers designation

-FM37

CECC Cutting edge condition code

F - Sharpedged

COATN Coating / Покрытие

WUU7610

COMPC Company code

CE - Ceratizit

D1 Fixing hole diameter

2.8 mm

EPSR Insert included angle

55 Degree

FamilyProducts

HM-DREHWENDEPLATTE

GRD2ND Standard designation of the grade 2nd application

HW-S15

GRDPRIO Standard designation of the grade main application

HW-N10

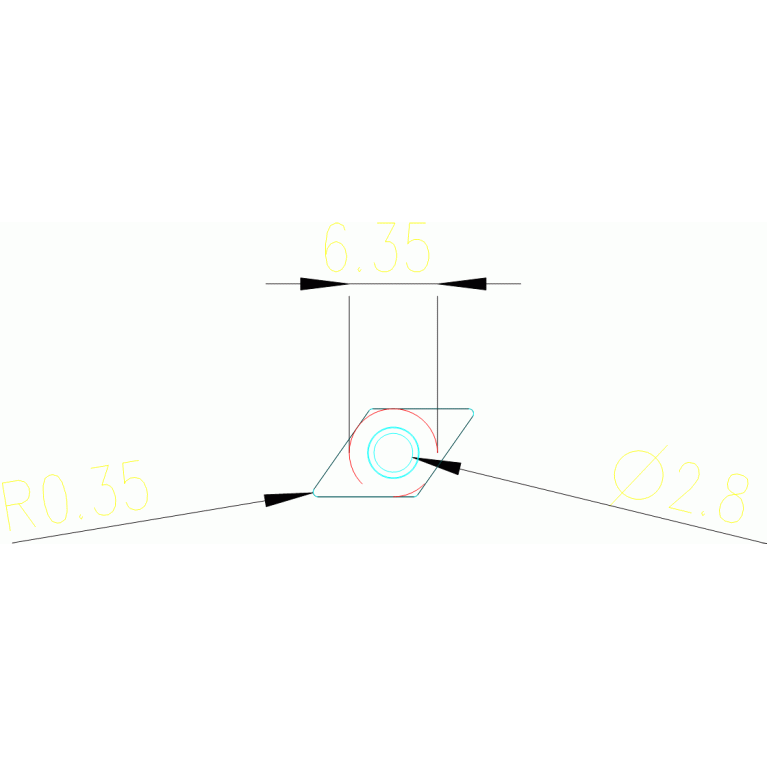

IC Inscribed circle diameter

6.35 mm

IH Insert hand

N - Neutral

Interface codes

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

7.75 mm

LE Cutting edge effective length

4.1 mm

Name Identifying order number

72400035

RE Corner radius

0.35 mm

S Insert thickness

2.38 mm

TCINS Tolerance class insert

Working process

No working processes available
