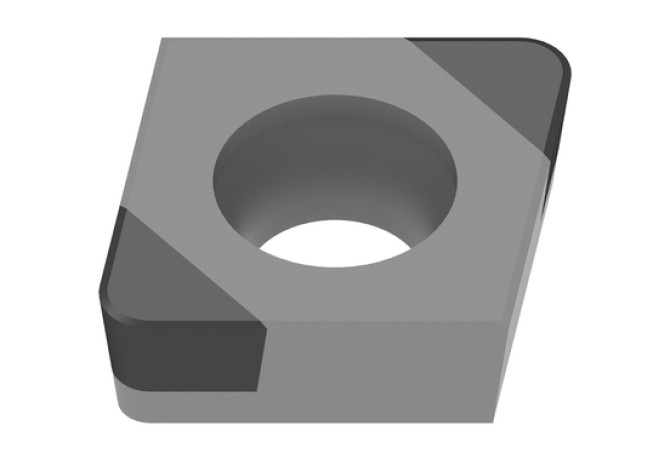

7100030214
7100030214
Артикул:
7100030214
В наличии
Характеристики
AN Clearance angle major
7 Degree
BN Face land width
0.11 mm
CECC Cutting edge condition code
S - Chamfered and rounded
COATN Coating / Покрытие
CTBH15C
COMPC Company code
CE - Ceratizit
D1 Fixing hole diameter
2.8 mm
Delivery state valid from
10/1/2021
EPSR Insert included angle
80 Degree
FamilyProducts
PCBN-DREHWENDEPLATTE
GRDPRIO Standard designation of the grade main application
BC-H15
IC Inscribed circle diameter
6.35 mm
IH Insert hand
N - Neutral
Interface codes
/
ISISO ISO property
1
ISYC Subclass
201-03 - Rhombic insert
L Cutting edge length
6.4 mm
LE Cutting edge effective length
3.4 mm
Name Identifying order number
7100030214
NOI Insert index count
2
RE Corner radius
0.2 mm
S Insert thickness
2.38 mm
TCE Tipped cutting edge code
B
TCINS Tolerance class insert
G
Working process
No working processes available
