6411767

Артикул: 6411767

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

CBMD Chip breaker manufacturers designation

MRS

COMPC Company code

BK - Boehlerit

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5.16 mm

Delivery state valid from

2/1/2009

DIN

CN1204 2N

EPSR Insert included angle

80 Degree

FamilyProducts

80° Rhombic insert

GRD2ND Standard designation of the grade 2nd application

HC-M15

GRDMFG Grade manufacturers designation

LC415Z

GRDPRIO Standard designation of the grade main application

HC-S15

IC Inscribed circle diameter

12.7 mm

ID Identifying order number

6411767

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

J22 Product name

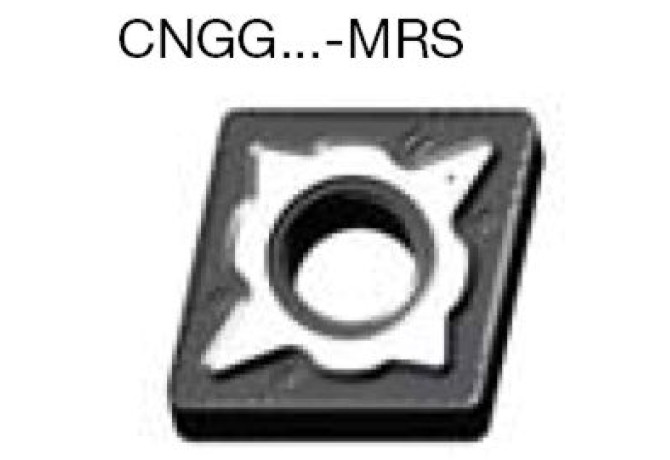

CNGG120412-MRS LC415Z

L Cutting edge length

12.9 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

CN1204 2N

Materials

M,S

RE Corner radius

1.2 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

CNGG120412

STDDESAnsi Standard designation ANSI

CNGG433

TCINS Tolerance class insert

Working process

DDA - External turning,DDI - Internal turning,DFA - External form turning
