6400004

Артикул: 6400004

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

CBMD Chip breaker manufacturers designation

BFM

COATN Coating / Покрытие

MT-Al2O3

COMPC Company code

BK - Boehlerit

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

3.81 mm

Delivery state valid from

12/1/2006

DIN

CN0903 2N

EPSR Insert included angle

80 Degree

FamilyProducts

80° Rhombic insert

GRD2ND Standard designation of the grade 2nd application

HC-K15

GRDMFG Grade manufacturers designation

LC215B

GRDPRIO Standard designation of the grade main application

HC-P15

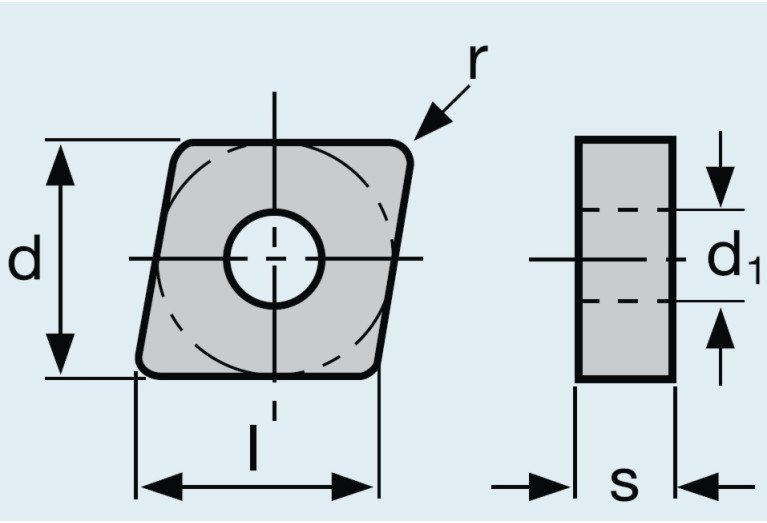

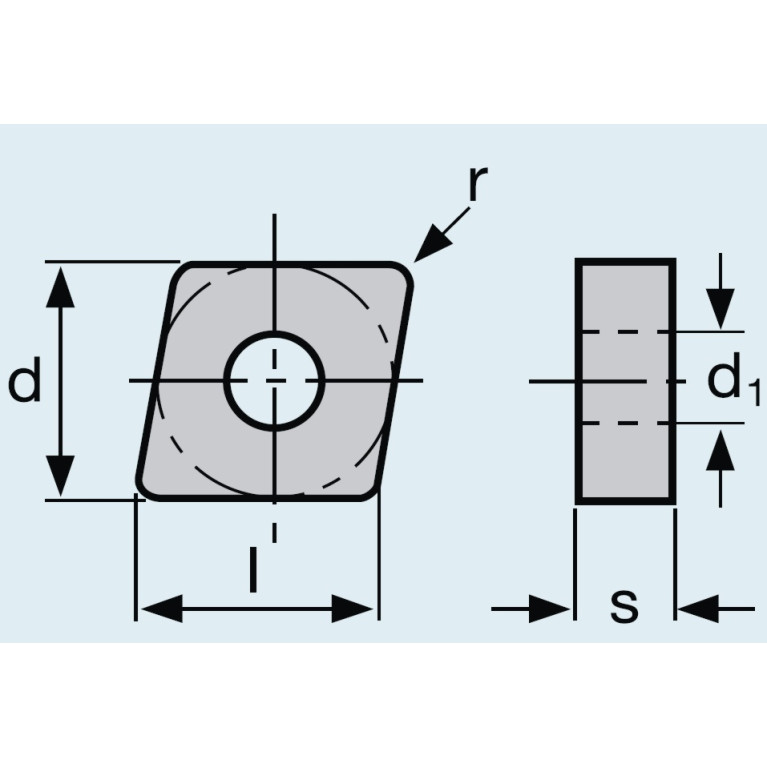

IC Inscribed circle diameter

9.52 mm

ID Identifying order number

6400004

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

J22 Product name

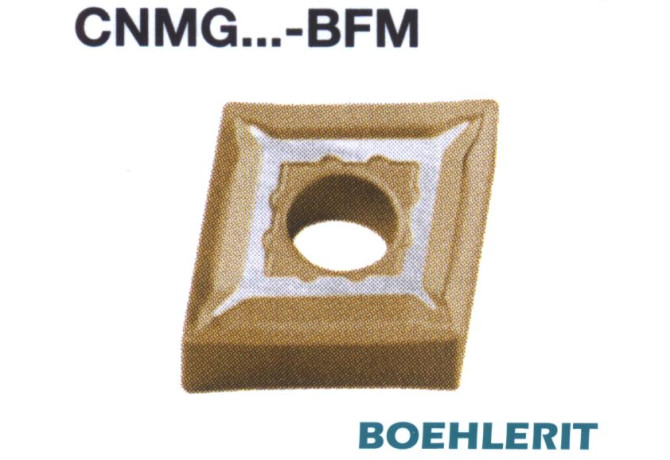

CNMG090304-BFM LC215B

L Cutting edge length

9.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

CN0903 2N

Materials

P,M,K

RE Corner radius

0.4 mm

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

CNMG090304

STDDESAnsi Standard designation ANSI

CNMG321

TCINS Tolerance class insert

Working process

DDA - External turning,DDB - External and internal turning,DDI - Internal turning
