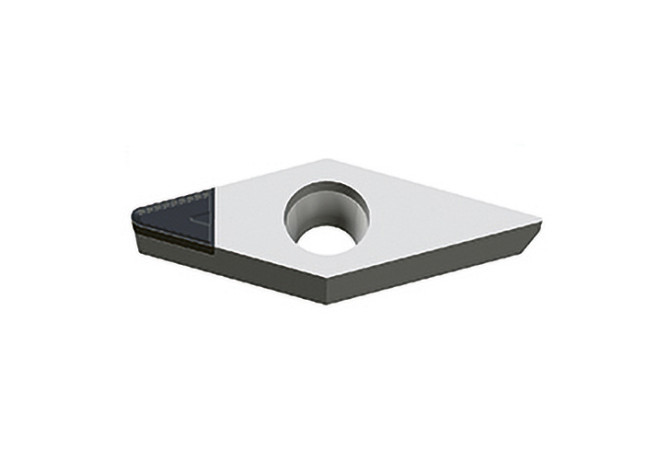

VCGT 160408 CB KP300

Артикул: 5402898

В наличии

В корзину

Описание

Характеристики

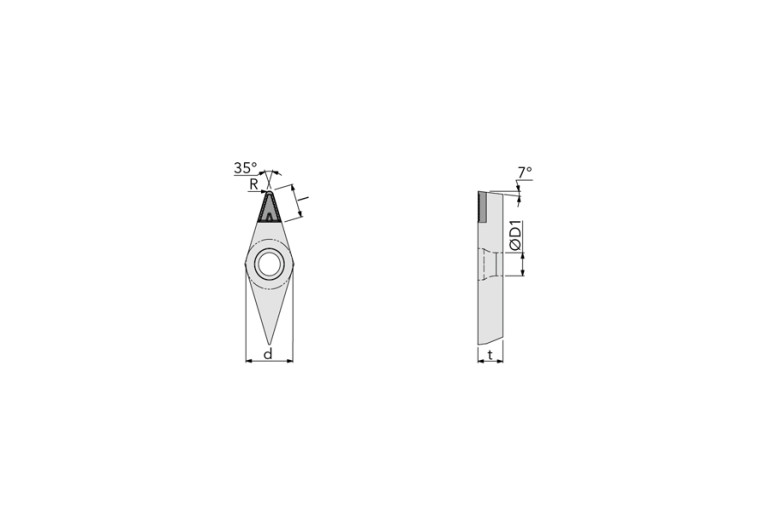

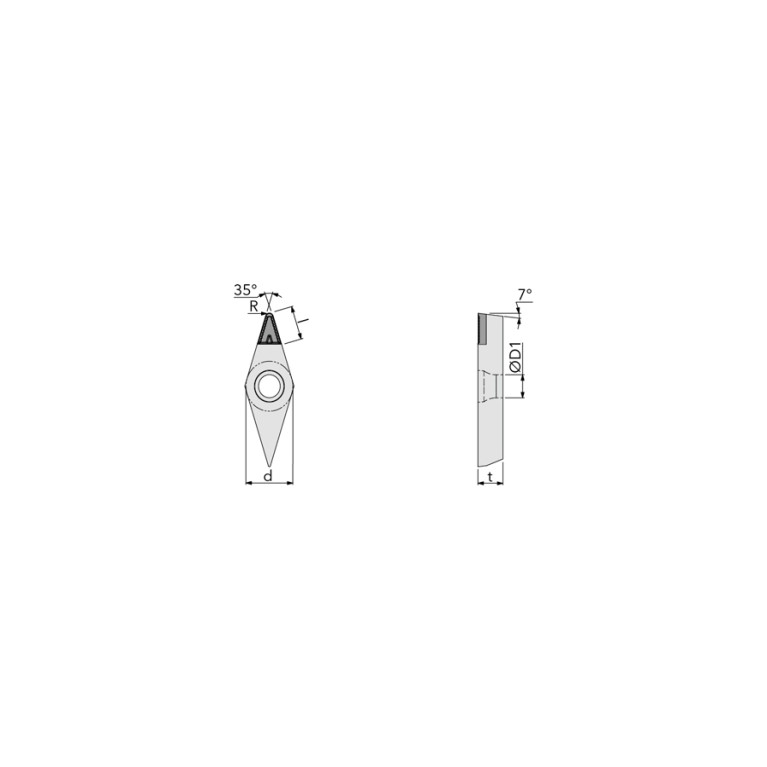

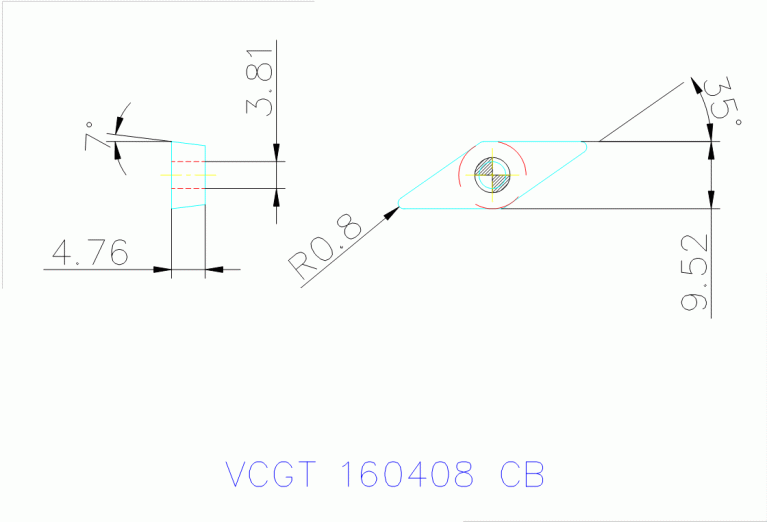

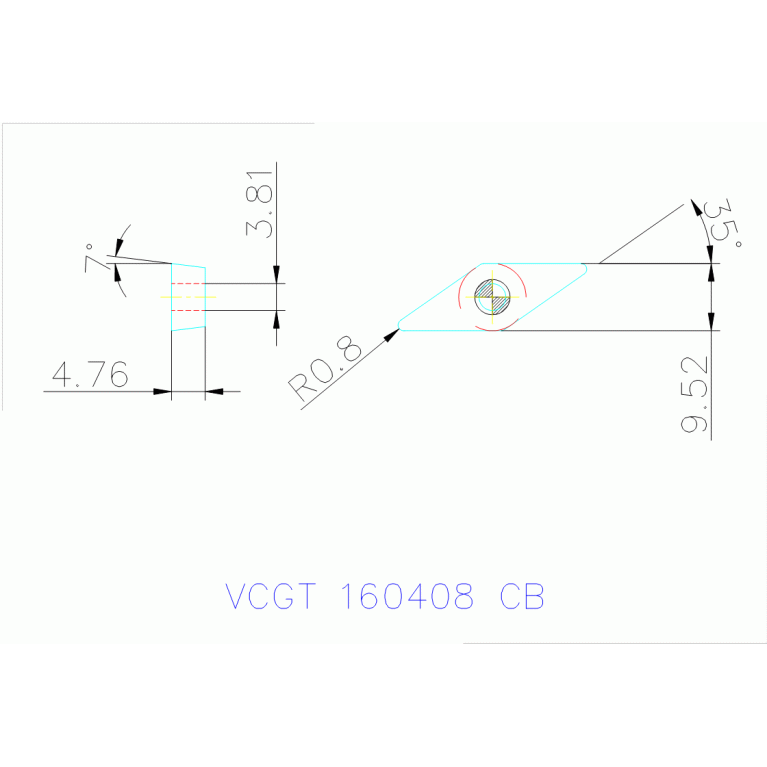

AN Clearance angle major

7 Degree

CB Chip breaker face count

0 - Without chip breaker

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

3.8 mm

Delivery state

NL - Discontinued

DIN

VC1604083N

EPSR Insert included angle

35 Degree

FamilyProducts

insert, Positive 35° PCD Insert - 7° clearance (peripheral grinded) PCD with Chip breaker

GRDMFG Grade manufacturers designation

KP300

IC Inscribed circle diameter

9.52 mm

ID Technical product number

5402898

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

6.4 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

VC1604083N

Name Identifying order number

VCGT 160408 CB KP300

RE Corner radius

0.8 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

VCGT160408

STDDESAnsi Standard designation ANSI

VCGT332

TCINS Tolerance class insert

Working process

No working processes available
