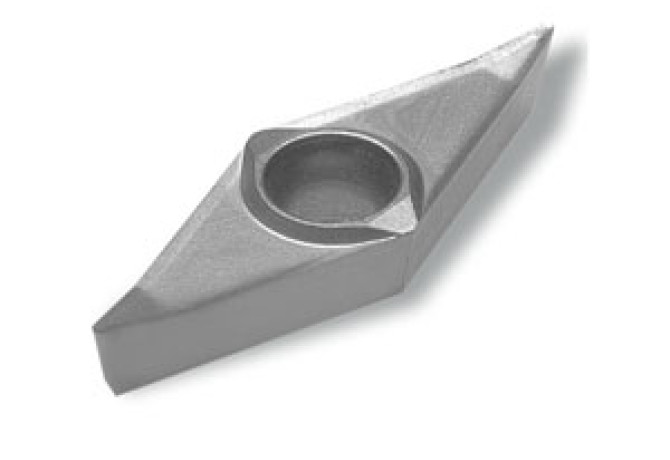

VCGT 160404FN-27 H10T

Артикул: 80175

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

F - Sharpedged

COMPC Company code

CE - Ceratizit

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.4 mm

DIN

VC1604043N

EPSR Insert included angle

35 Degree

FamilyProducts

turning insert

GRDMFG Grade manufacturers designation

H10T

GRDPRIO Standard designation of the grade main application

HW-K10

IC Inscribed circle diameter

9.52 mm

ID Technical product number

80175

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

16.6 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

VC1604043N

Materials

K,N

Name Identifying order number

VCGT 160404FN-27 H10T

RE Corner radius

0.4 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

VCGT160404FN

STDDESAnsi Standard designation ANSI

VCGT331FN

TCINS Tolerance class insert

Working process

No working processes available
