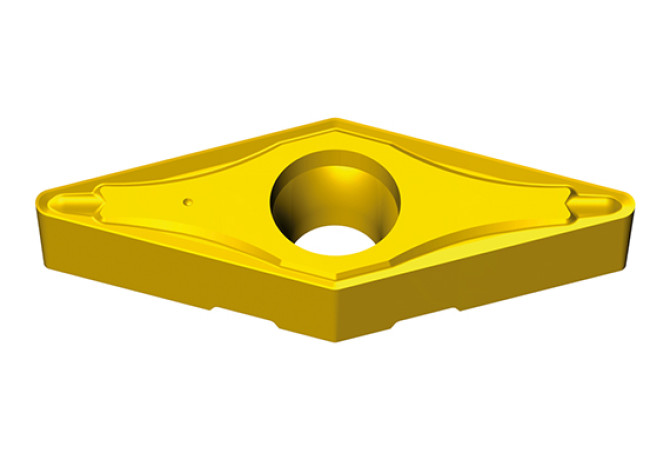

VBMX 160404 FG TT5080

Артикул: 6247143

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

5 Degree

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

TiAlN+TiN

COMPC Company code

IL - Ingersoll

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

7/1/2024

DIN

VB1604043N

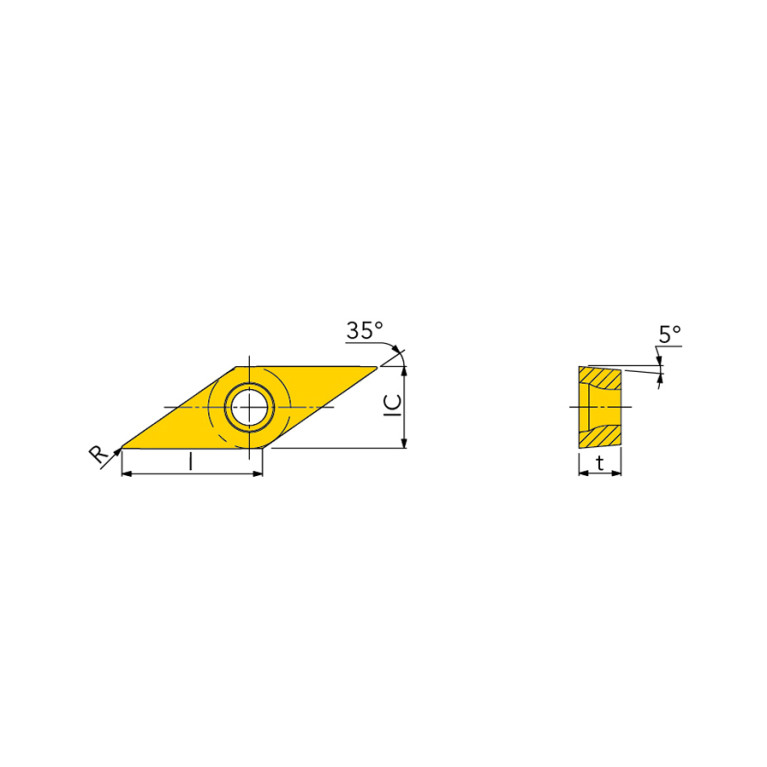

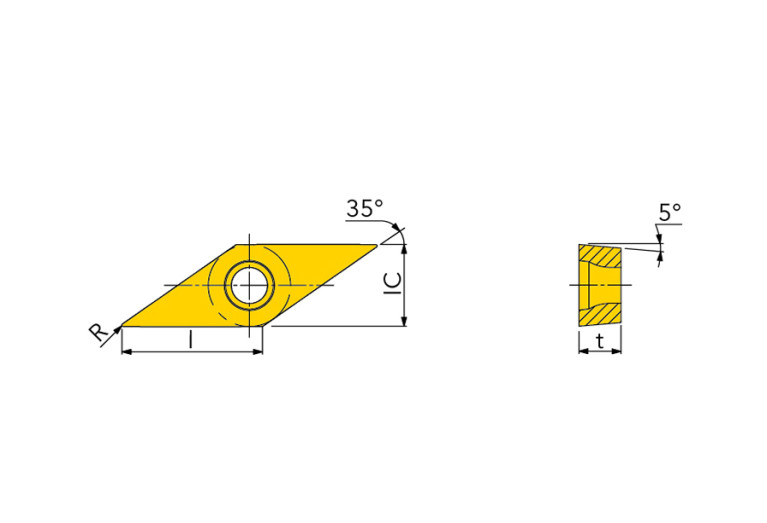

EPSR Insert included angle

35 Degree

FamilyProducts

Chipbreaker, negative 35° rhombic inserts

GRD2ND Standard designation of the grade 2nd application

S05-S25

GRDMFG Grade manufacturers designation

TT5080

GRDPRIO Standard designation of the grade main application

M05-M25

IC Inscribed circle diameter

9.52 mm

ID Technical product number

6247143

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

16.6 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

VB1604043N

Materials

M,S

Name Identifying order number

VBMX 160404 FG TT5080

RE Corner radius

0.4 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

VBMX160404

STDDESAnsi Standard designation ANSI

VBMX331

STDNO Standard

IL-WSP-4487

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available
