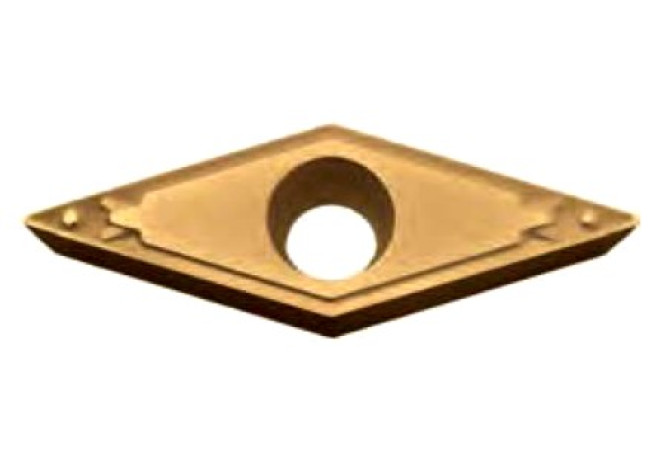

VBMT160404N-M30-CP872

Артикул: VBMT160404N-M30-CP872

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

5 Degree

BN Face land width

0.2 mm

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

M30

CECC Cutting edge condition code

T - Chamfered

COATN Coating / Покрытие

AlTiN

COMPC Company code

MP - Mapal

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

8/1/2013

DIN

VB1604 3N

EPSR Insert included angle

35 Degree

FamilyProducts

Radial indexable insert VBMT, 2 cutting edges

GAN Insert rake angle

15 Degree

GB Face land angle

5 Degree

GRDMFG Grade manufacturers designation

CP872

IC Inscribed circle diameter

9.525 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

VB1604 3N

Materials

P,M,K

Name Identifying order number

VBMT160404N-M30-CP872

RE Corner radius

0.4 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

VBMT160404N

STDDESAnsi Standard designation ANSI

VBMT331N

TCINS Tolerance class insert

Working process

B - Drilling,BAB - Open by boring,BVB - Drilling,FEC - Square shoulder milling,FPL - Face milling
