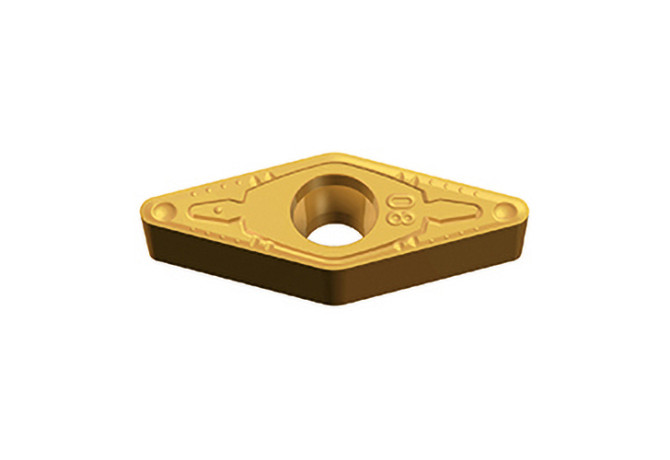

VBMT 110308 FM TT8125B

Артикул: 6216740

В наличии

В корзину

Описание

Характеристики

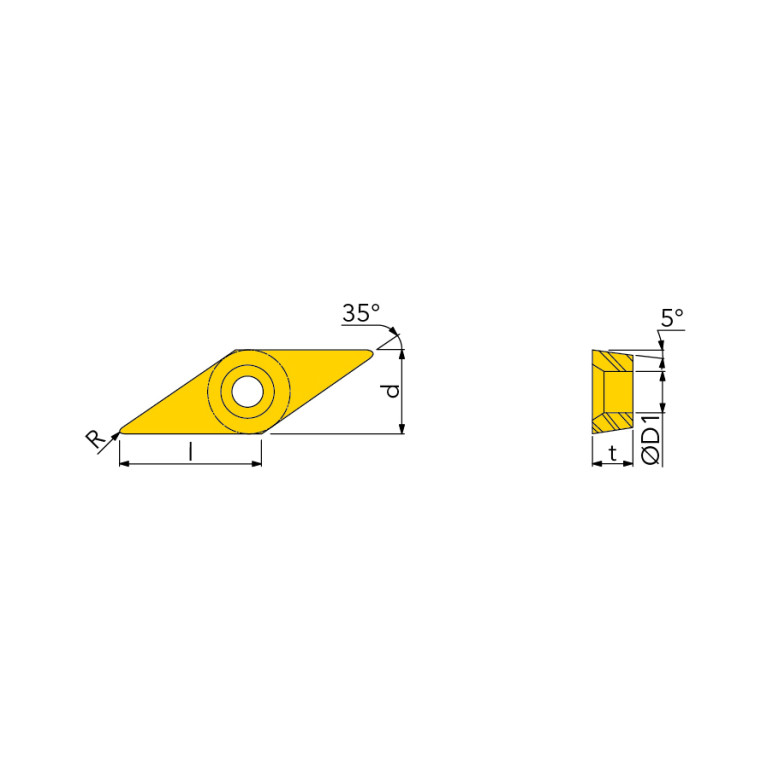

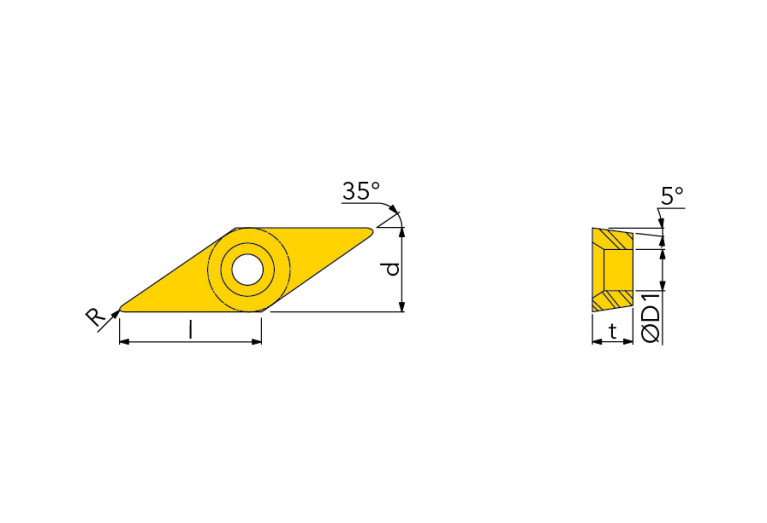

AN Clearance angle major

5 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

TiCN+Al2O3+TiN

COMPC Company code

IL - Ingersoll

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

2.8 mm

Delivery state valid from

7/1/2024

DIN

VB1103083N

EPSR Insert included angle

35 Degree

FamilyProducts

insert, Positive 5° clearance 35° rhombic inserts for semi finishing and medium machining

GRDMFG Grade manufacturers designation

TT8125B

GRDPRIO Standard designation of the grade main application

P15-P30

IC Inscribed circle diameter

6.35 mm

ID Technical product number

6216740

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

11.07 mm

LE Cutting edge effective length

8.9 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

VB1103083N

Materials

MIID Master insert identification

VBMT110308 TT8125B

Name Identifying order number

VBMT 110308 FM TT8125B

RE Corner radius

0.8 mm

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

VBMT110308

STDDESAnsi Standard designation ANSI

VBMT222

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available
