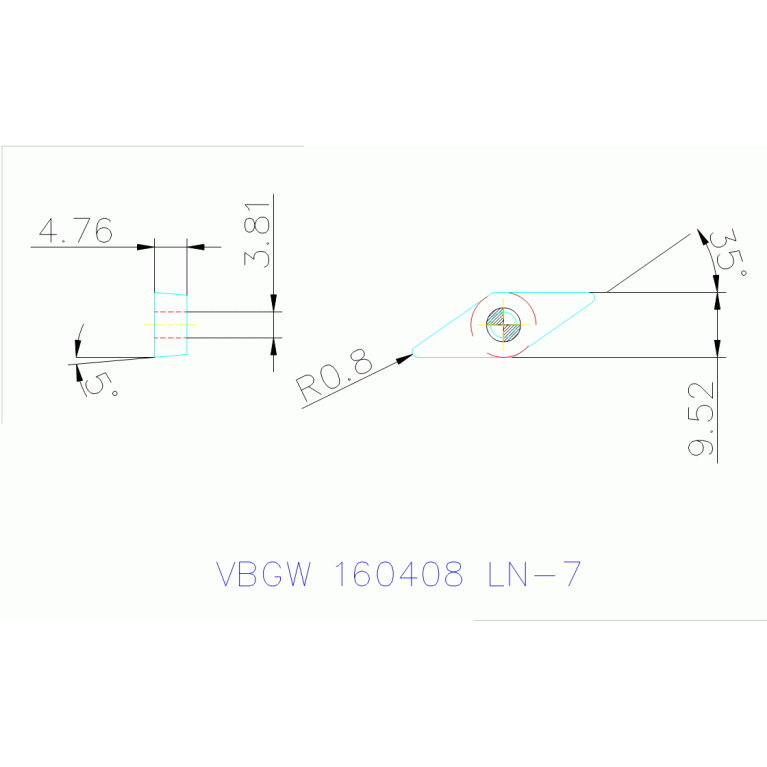

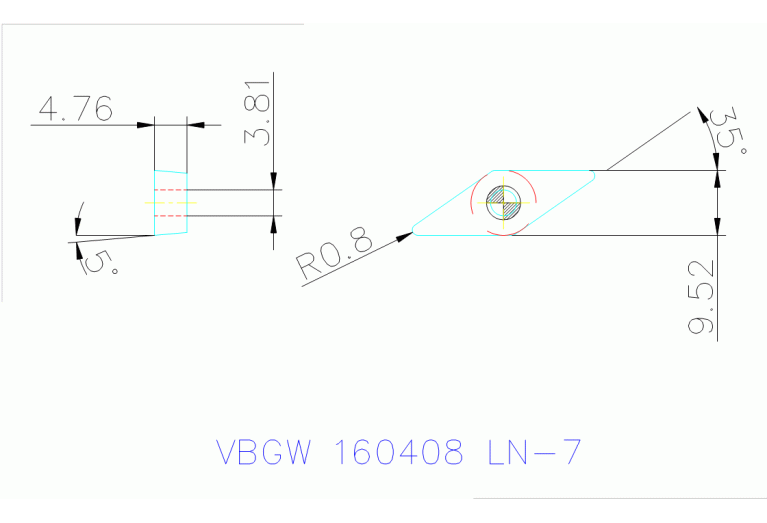

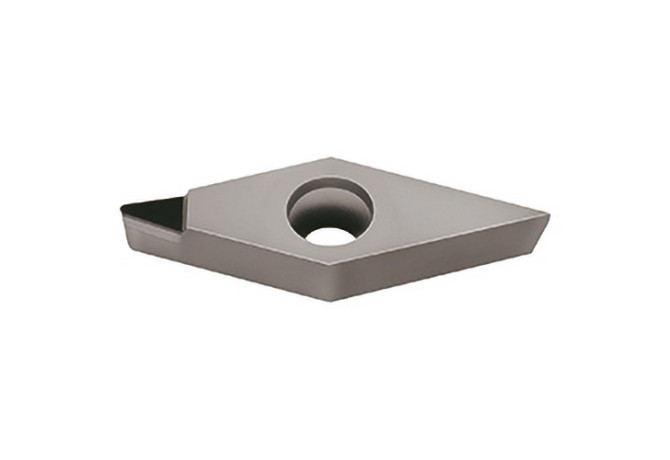

VBGW 160408 LN-7 KP300

Артикул: 5400978

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

5 Degree

CB Chip breaker face count

0 - Without chip breaker

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

4.4 mm

Delivery state

NL - Discontinued

DIN

VB1604083N

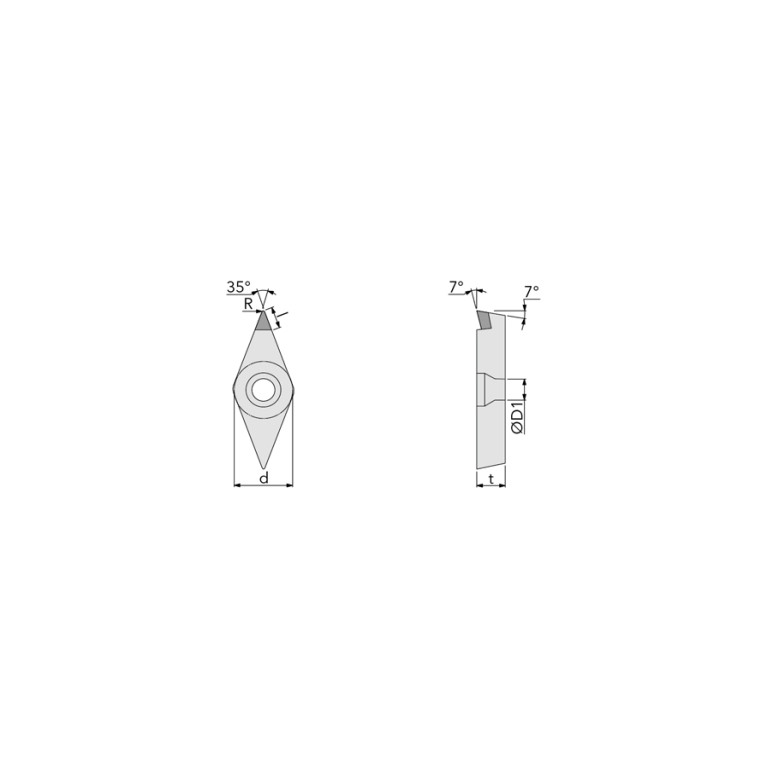

EPSR Insert included angle

35 Degree

FamilyProducts

insert, Positive 35° PCD Insert - 5° clearance for high speed machining for aluminum

GRDMFG Grade manufacturers designation

KP300

IC Inscribed circle diameter

9.52 mm

ID Technical product number

5400978

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

4.2 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

VB1604083N

Name Identifying order number

VBGW 160408 LN-7 KP300

RE Corner radius

0.8 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

VBGW160408

STDDESAnsi Standard designation ANSI

VBGW332

TCINS Tolerance class insert

Working process

No working processes available
