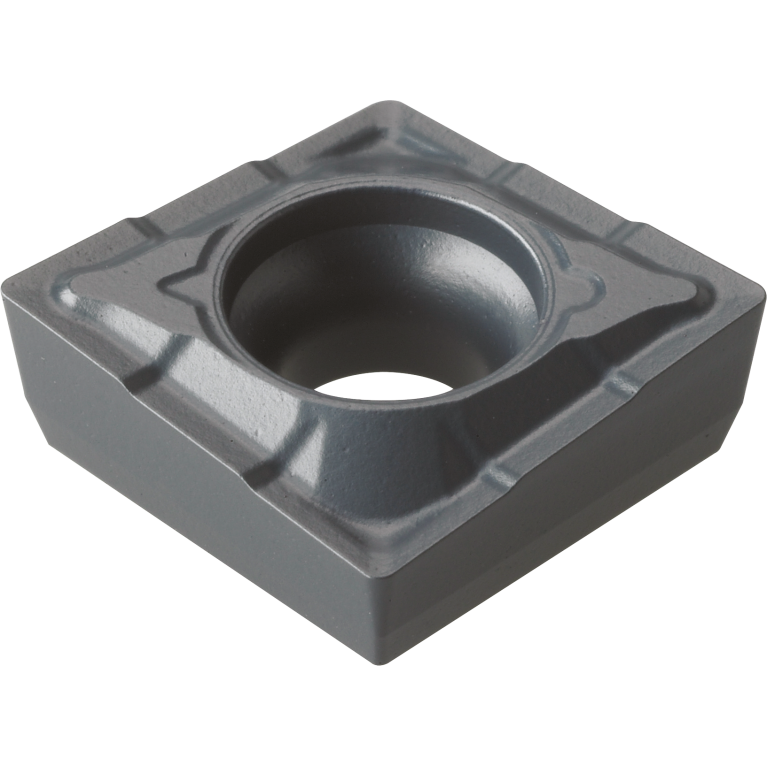

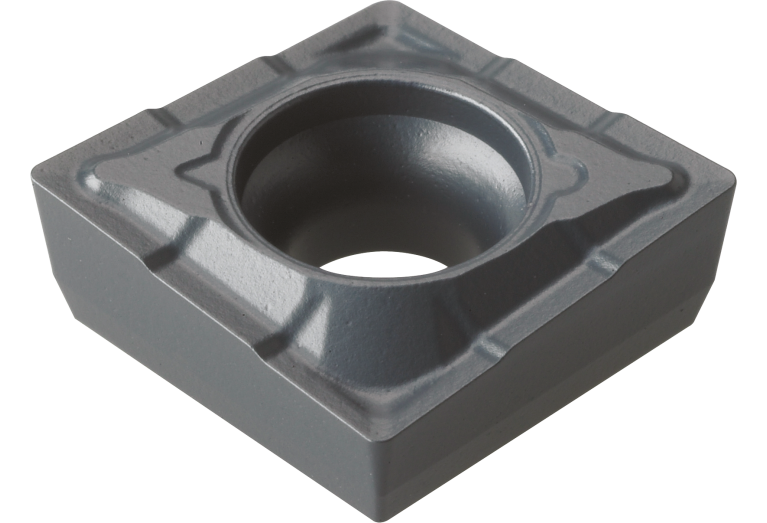

QCMT080304-CM NC3220

Артикул: 1-02-045248

В наличии

В корзину

Описание

Характеристики

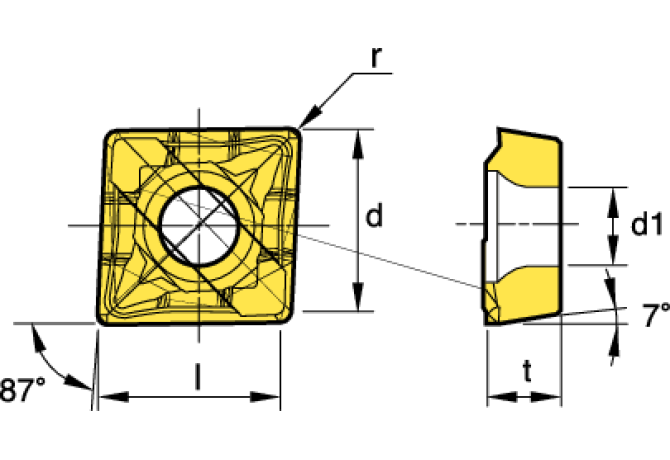

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

Coated

COMPC Company code

KOR - Korloy

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

3.4 mm

Delivery state valid from

6/4/2014

DIN

QC0803 3N

EPSR Insert included angle

87 Degree

FamilyProducts

Multi Turn

GRDMFG Grade manufacturers designation

NC3220

GRDPRIO Standard designation of the grade main application

Carbide

IC Inscribed circle diameter

8.4 mm

ID Technical product number

1-02-045248

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

QC0803 3N

Name Identifying order number

QCMT080304-CM NC3220

RE Corner radius

0.4 mm

S Insert thickness

3.18 mm

STDDES Standard designation

QCMT080304-CM

TCINS Tolerance class insert

Working process

No working processes available
