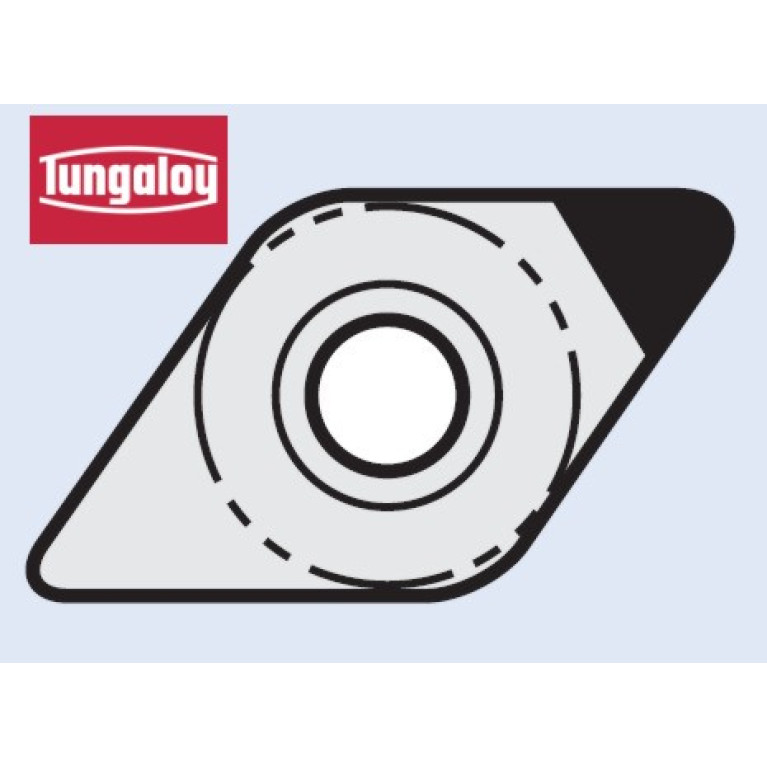

Q-DCMW070202 AT530

Артикул: Q-DCMW070202 AT530

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

0 - Without chip breaker

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

PVD

COMPC Company code

TT - Tungaloy

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

8/24/2006

DIN

DC0702 3N

EPSR Insert included angle

55 Degree

FamilyProducts

QBN Inserts for hard turning (up to 65 HRC)

GRDMFG Grade manufacturers designation

AT530

GRDPRIO Standard designation of the grade main application

HT-P15

IC Inscribed circle diameter

6.35 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

7.8 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

DC0702 3N

Name Identifying order number

Q-DCMW070202 AT530

RE Corner radius

0.2 mm

S Insert thickness

2.38 mm

S1 Insert thickness total

2.38 mm

STDDES Standard designation

DCMW070202

TCINS Tolerance class insert

Working process

No working processes available
