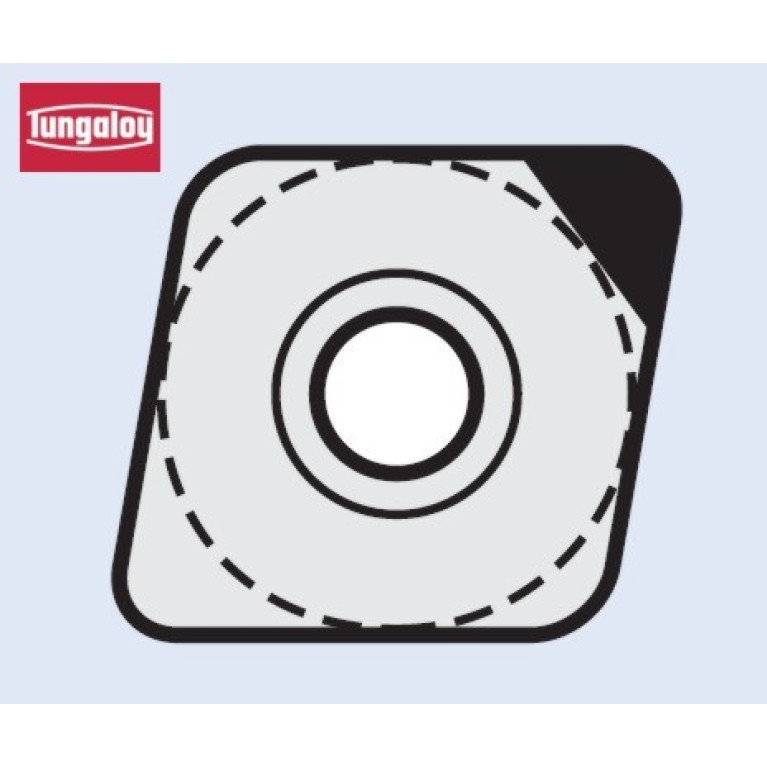

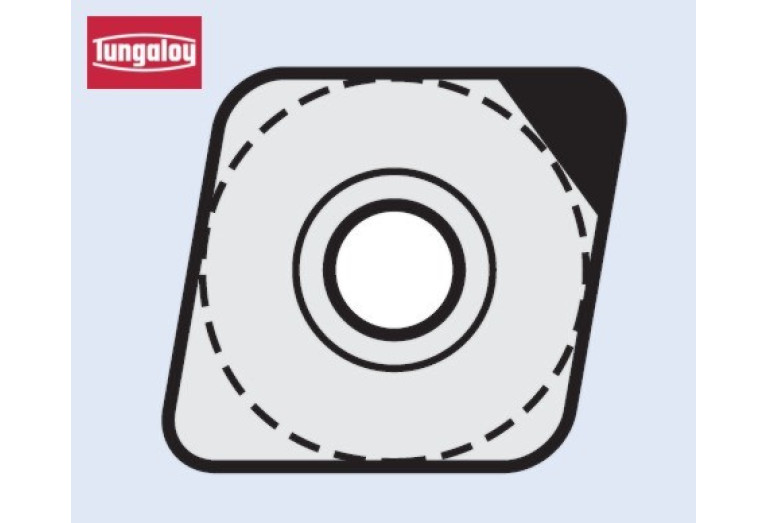

Q-CPMW09T302 T7010

Артикул: Q-CPMW09T302 T7010

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

CB Chip breaker face count

0 - Without chip breaker

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

CVD

COMPC Company code

TT - Tungaloy

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

8/24/2006

DIN

CP09T3 3N

EPSR Insert included angle

80 Degree

FamilyProducts

QBN Inserts for hard turning (up to 65 HRC)

GRDMFG Grade manufacturers designation

T7010

GRDPRIO Standard designation of the grade main application

HC-P10

IC Inscribed circle diameter

9.525 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

9.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

CP09T3 3N

Name Identifying order number

Q-CPMW09T302 T7010

RE Corner radius

0.2 mm

S Insert thickness

3.97 mm

S1 Insert thickness total

3.97 mm

STDDES Standard designation

CPMW09T302

TCINS Tolerance class insert

Working process

F - Milling
