Q-CPMW060202 TH10

Артикул: Q-CPMW060202 TH10

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

CB Chip breaker face count

0 - Without chip breaker

CBMD Chip breaker manufacturers designation

COMPC Company code

TT - Tungaloy

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

8/24/2006

DIN

CP0602 3N

EPSR Insert included angle

80 Degree

FamilyProducts

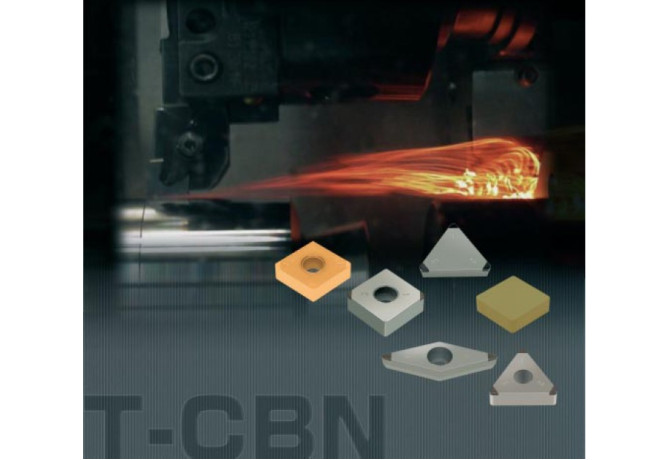

QBN Inserts for hard turning (up to 65 HRC)

GRDMFG Grade manufacturers designation

TH10

GRDPRIO Standard designation of the grade main application

HW-K10

IC Inscribed circle diameter

6.35 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

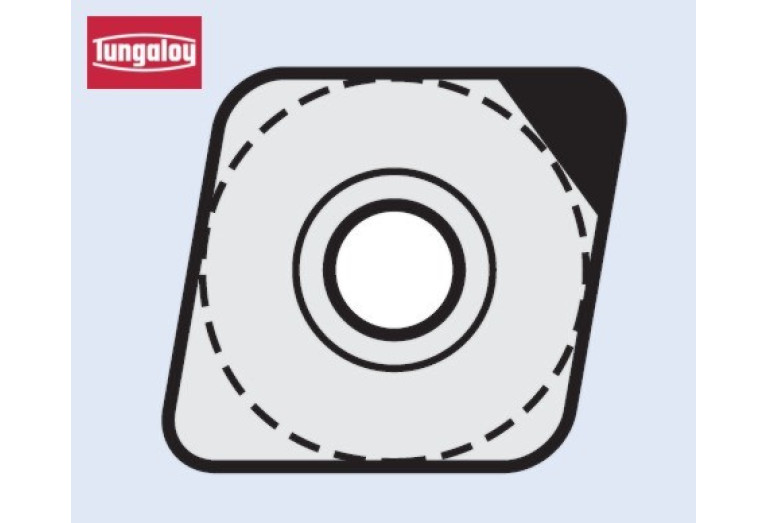

201-03 - Rhombic insert

L Cutting edge length

6.5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

CP0602 3N

Name Identifying order number

Q-CPMW060202 TH10

RE Corner radius

0.2 mm

S Insert thickness

2.38 mm

S1 Insert thickness total

2.38 mm

STDDES Standard designation

CPMW060202

TCINS Tolerance class insert

Working process

DDA - External turning,DDI - Internal turning
