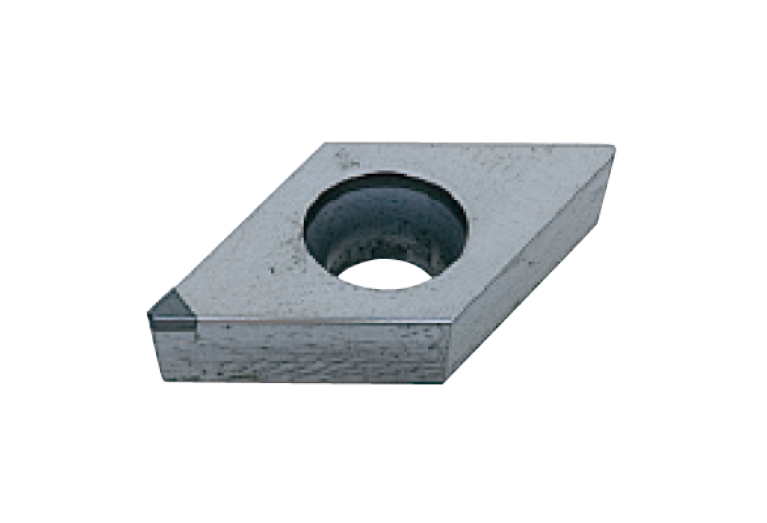

NP-DCGW11T308F MB8025

Артикул: 413403

В наличии

В корзину

Описание

Характеристики

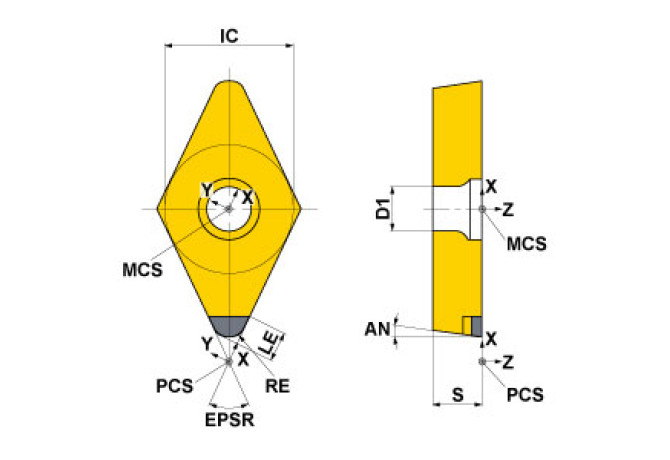

AN Clearance angle major

7 Degree

CB Chip breaker face count

0 - Without chip breaker

COMPC Company code

MI - Mitsubishi Materials

D1 Fixing hole diameter

4.4 mm

Delivery state valid from

4/1/2022

DIN

DC11T3083N

EPSR Insert included angle

55 Degree

FamilyProducts

INSERT, TURNING, CBN

GRDMFG Grade manufacturers designation

MB8025

IC Inscribed circle diameter

9.525 mm

ID Technical product number

413403

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

11.62 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

DC11T3083N

Materials

Name Identifying order number

NP-DCGW11T308F MB8025

NameAnsi Identifying order number inch alternative

NP-DCGW32.52F MB8025

NOI Insert index count

RE Corner radius

0.8 mm

S Insert thickness

3.97 mm

S1 Insert thickness total

3.97 mm

STDDES Standard designation

DCGW11T308F

STDDESAnsi Standard designation ANSI

NP-DCGW32.52F

TCINS Tolerance class insert

Working process

No working processes available
