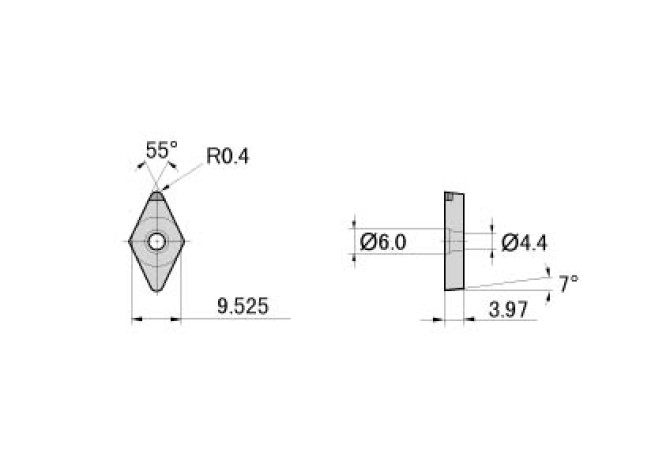

NP-DCGW11T304T MB835

Артикул: 155811

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

ANN Clearance angle minor

0 Degree

AS Clearance angle wiper edge

0 Degree

CB Chip breaker face count

0 - Without chip breaker

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.4 mm

Delivery state valid from

4/1/2022

DIN

DC11T3043N

EPSR Insert included angle

55 Degree

FamilyProducts

INSERT, TURNING, CBN

GAN Insert rake angle

0 Degree

GRDMFG Grade manufacturers designation

MB835

IC Inscribed circle diameter

9.525 mm

ID Technical product number

155811

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

11.62 mm

LE Cutting edge effective length

2.1 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

DC11T3043N

Materials

Name Identifying order number

NP-DCGW11T304T MB835

NameAnsi Identifying order number inch alternative

NP-DCGW32.51T MB835

RE Corner radius

0.4 mm

S Insert thickness

3.97 mm

S1 Insert thickness total

3.97 mm

STDDES Standard designation

DCGW11T304

STDDESAnsi Standard designation ANSI

NP-DCGW32.51T

TCINS Tolerance class insert

Working process

DDA - External turning,DDI - Internal turning,DFA - External form turning,DFI - Internal form turning
