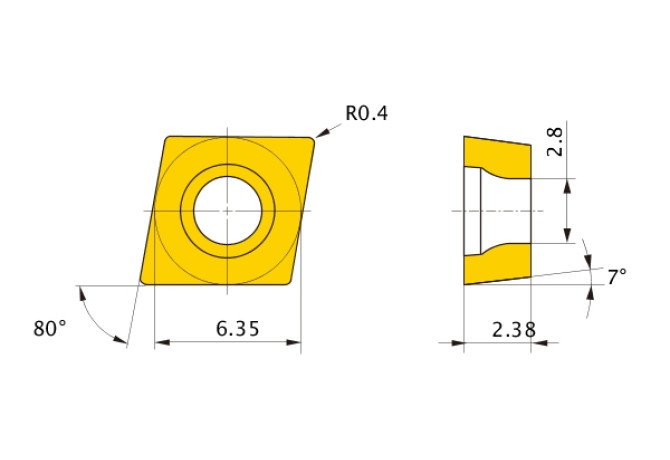

NP-CCMB060204G MB825

Артикул: 296243

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

0 - Without chip breaker

COMPC Company code

MI - Mitsubishi Materials

D1 Fixing hole diameter

2.8 mm

Delivery state valid from

4/1/2022

DIN

CC0602044N

EPSR Insert included angle

80 Degree

FamilyProducts

insert for turning, negative, NP-CCMB-G

GRDMFG Grade manufacturers designation

MB825

IC Inscribed circle diameter

6.35 mm

ID Technical product number

296243

IFS Insert mounting style code

4 - Counter bore for screws with taper angle from 70° to 90°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

6.44 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

CC0602044N

Name Identifying order number

NP-CCMB060204G MB825

NameAnsi Identifying order number inch alternative

NP-CCMB21.51G MB825

NOI Insert index count

RE Corner radius

0.4 mm

S Insert thickness

2.38 mm

S1 Insert thickness total

2.38 mm

STDDES Standard designation

CCMB060204G

STDDESAnsi Standard designation ANSI

NP-CCMB21.51G

TCINS Tolerance class insert

Working process

No working processes available
