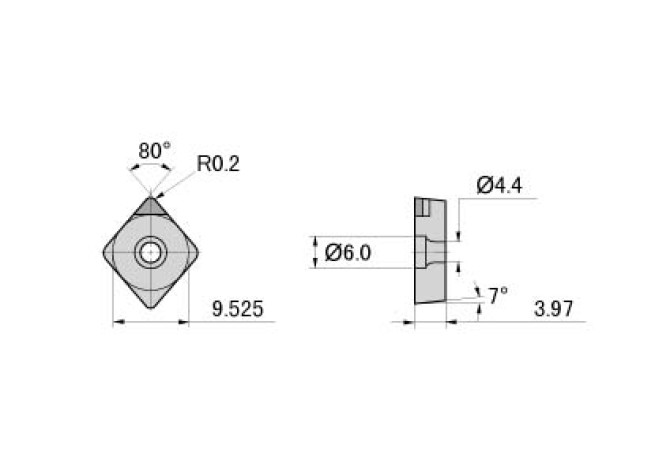

NP-CCGW09T302F MB810

Артикул: 170860

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

ANN Clearance angle minor

0 Degree

AS Clearance angle wiper edge

0 Degree

CB Chip breaker face count

0 - Without chip breaker

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.4 mm

Delivery state valid from

4/1/2022

DIN

CC09T3023N

EPSR Insert included angle

80 Degree

FamilyProducts

INSERT, TURNING, CBN

GAN Insert rake angle

0 Degree

GRDMFG Grade manufacturers designation

MB810

IC Inscribed circle diameter

9.525 mm

ID Technical product number

170860

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

9.67 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

CC09T3023N

Materials

Name Identifying order number

NP-CCGW09T302F MB810

NameAnsi Identifying order number inch alternative

NP-CCGW32.50.5F MB810

RE Corner radius

0.2 mm

S Insert thickness

3.97 mm

S1 Insert thickness total

3.97 mm

STDDES Standard designation

CCGW09T302

STDDESAnsi Standard designation ANSI

NP-CCGW32.50.5F

TCINS Tolerance class insert

Working process

BAB - Open by boring,DDA - External turning,DDI - Internal turning,FEC - Square shoulder milling,FNU - Groove milling
