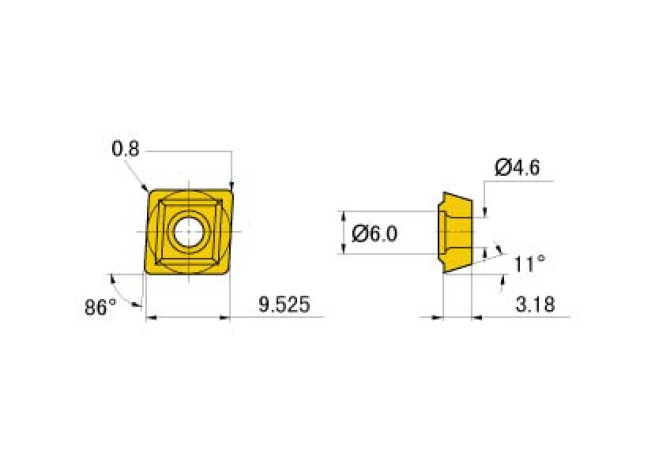

MPMT090308 UE6020

Артикул: MPMT090308 UE6020

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

ANN Clearance angle minor

0 Degree

AS Clearance angle wiper edge

0 Degree

CB Chip breaker face count

1 - With chip breaker one-side

COATN Coating / Покрытие

TiCN-Al2O3

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.6 mm

Delivery state valid from

4/1/2022

DIN

MI-MPMT090308

EPSR Insert included angle

86 Degree

FamilyProducts

INSERT, MILLING, COATED

GAN Insert rake angle

0 Degree

GRD2ND Standard designation of the grade 2nd application

HC-P30

GRDMFG Grade manufacturers designation

UE6020

GRDPRIO Standard designation of the grade main application

HC-P10

IC Inscribed circle diameter

9.52 mm

ID Technical product number

MPMT090308 UE6020

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

9.52 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

MI-MPMT090308

Name Identifying order number

MPMT090308 UE6020

NameAnsi Identifying order number inch alternative

MPMM322 UE6020

RE Corner radius

0.8 mm

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

MPMT090308

STDDESAnsi Standard designation ANSI

MPMM322

TCINS Tolerance class insert

Working process

F - Milling,FEC - Square shoulder milling,FPL - Face milling,FPR - Profile milling,FZI - Circular milling

WT Weight of item

0.042 kg
