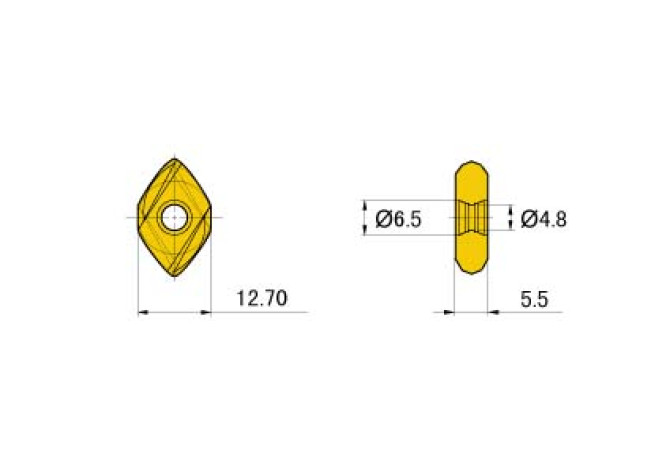

MGPEX1205ANTR1 UTi20T

Артикул: MGPEX1205ANTR1 UTi20T

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

ANN Clearance angle minor

0 Degree

AS Clearance angle wiper edge

0 Degree

CB Chip breaker face count

0 - Without chip breaker

CECC Cutting edge condition code

T - Chamfered

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.8 mm

Delivery state valid from

4/1/2022

DIN

MI-MGPEX1205ANTR1

FamilyProducts

INSERT, MILLING, UNCOATED

GAN Insert rake angle

0 Degree

GRD2ND Standard designation of the grade 2nd application

HW-P20-P30

GRD3RD Standard designation of the grade 3rd application

HW-K20-K30

GRDMFG Grade manufacturers designation

UTi20T

GRDPRIO Standard designation of the grade main application

HW-M20-M30

IC Inscribed circle diameter

12.7 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

KRINS Cutting edge angle major

45 Degree

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

MI-MGPEX1205ANTR1

Name Identifying order number

MGPEX1205ANTR1 UTi20T

S Insert thickness

5.5 mm

S1 Insert thickness total

5.5 mm

TCINS Tolerance class insert

Working process

FPL - Face milling
