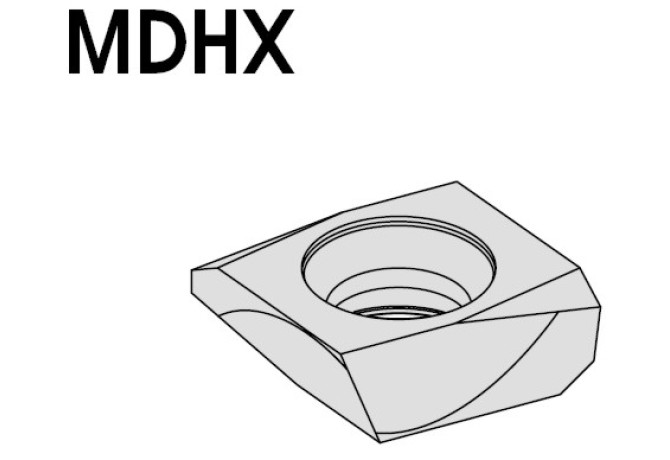

MDHX1004ZDFRGD4W K110M

Артикул: 1874248

В наличии

В корзину

Описание

Характеристики

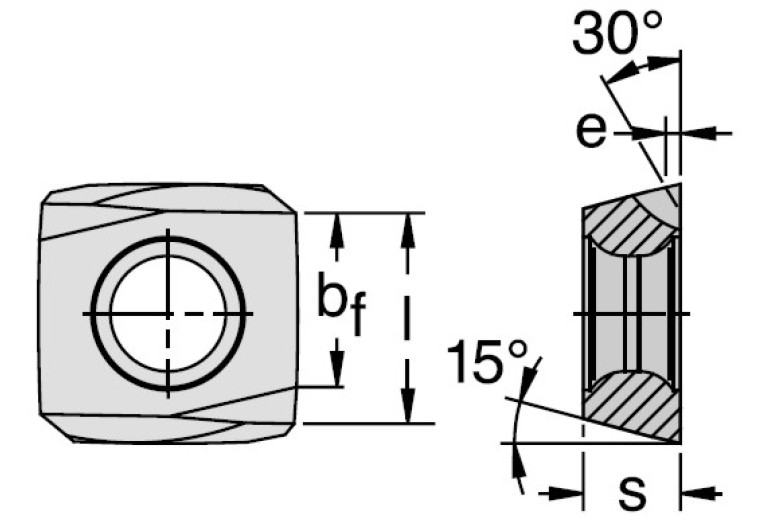

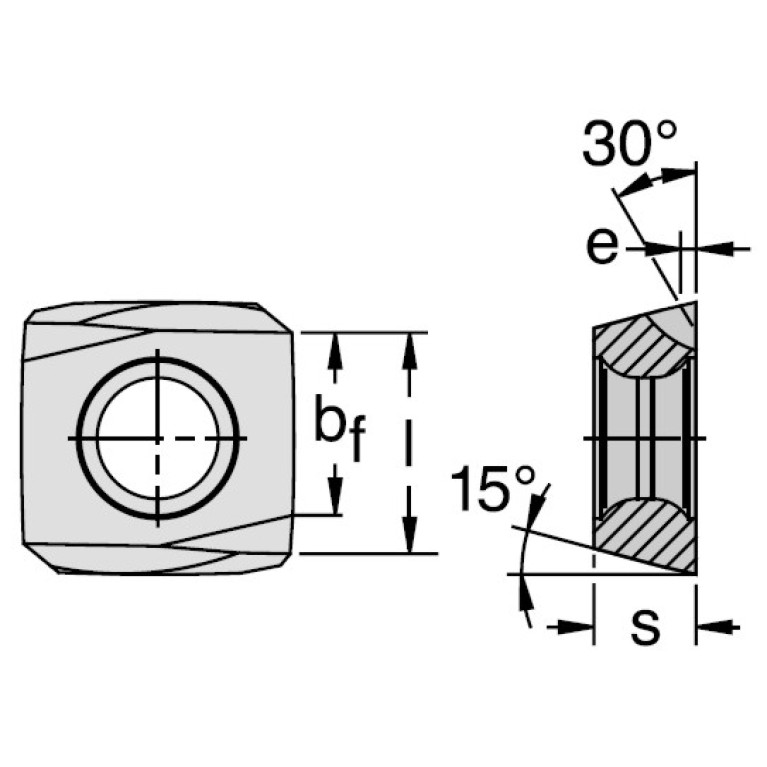

AN Clearance angle major

15 Degree

BN Face land width

1 mm

COMPC Company code

KH - Kennametal

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

11/20/2015

DIN

KH-MDHX1004ZDFRGD4W

EPSR Insert included angle

86 Degree

FamilyProducts

Milling insert for finishing

GRD2ND Standard designation of the grade 2nd application

HW-N15

GRD3RD Standard designation of the grade 3rd application

HW-S10

GRDMFG Grade manufacturers designation

K110M

GRDPRIO Standard designation of the grade main application

HW-K15

IC Inscribed circle diameter

10.8 mm

ID Technical product number

1874248

IFS Insert mounting style code

7 - Prismatic clamping, concave

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

LE Cutting edge effective length

8.5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

KH-MDHX1004ZDFRGD4W

Name Identifying order number

MDHX1004ZDFRGD4W K110M

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

MDHX1004ZDFR

TCINS Tolerance class insert

Working process

FPL - Face milling
