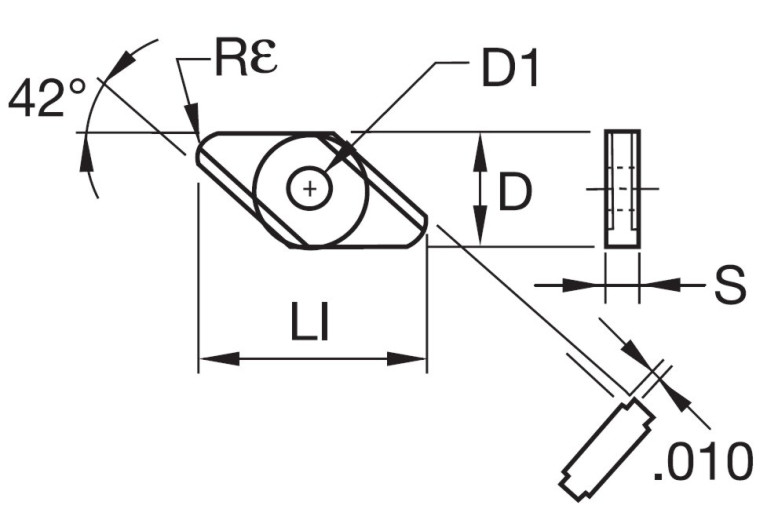

JA6A KC9105

Артикул: JA6A KC9105

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

COATN Coating / Покрытие

CVD

COMPC Company code

KH - Kennametal

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

6.35 mm

Delivery state valid from

8/1/2008

DIN

KH-JA6

EPSR Insert included angle

42 Degree

FamilyProducts

indexable insert for wheel and axle reconditioning

GRDMFG Grade manufacturers designation

KC9105

IFS Insert mounting style code

4 - Counter bore for screws with taper angle from 70° to 90°

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

32.72 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

KH-JA6

Name Identifying order number

JA6A KC9105

RE Corner radius

3.56 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

Working process

No working processes available
