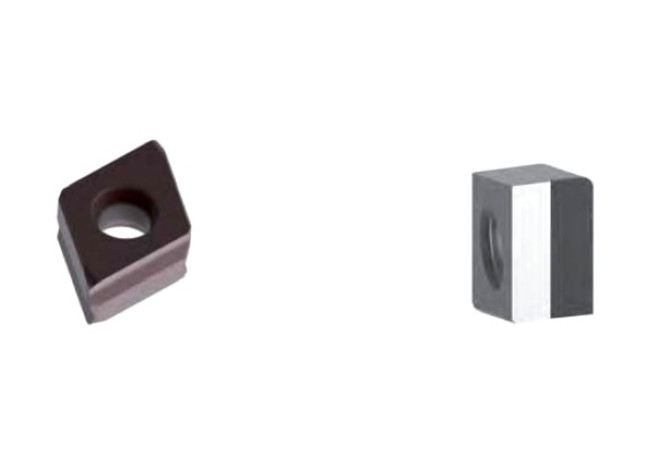

FTHQ090512A32L00B016-HP615

Артикул: FTHQ090512A32L00B016-HP615

В наличии

В корзину

Описание

Характеристики

CB Chip breaker face count

0 - Without chip breaker

CBMD Chip breaker manufacturers designation

A32

COATN Coating / Покрытие

TiB2

COMPC Company code

MP - Mapal

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

8/1/2013

DIN

FT0905 3L

EPSR Insert included angle

70 Degree

FamilyProducts

Tangential indexable insert FTHQ, 4 cutting edges

GAN Insert rake angle

18 Degree

GRDMFG Grade manufacturers designation

HP615

IC Inscribed circle diameter

9.525 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

L - Left

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

KRINS Cutting edge angle major

0 Degree

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

FT0905 3L

Materials

K,N

Name Identifying order number

FTHQ090512A32L00B016-HP615

RE Corner radius

1.2 mm

S Insert thickness

5.56 mm

S1 Insert thickness total

5.56 mm

STDDES Standard designation

FTHQ090512L

TCINS Tolerance class insert

Working process

B - Drilling,BAB - Open by boring,BVB - Drilling,FEC - Square shoulder milling,FPL - Face milling
