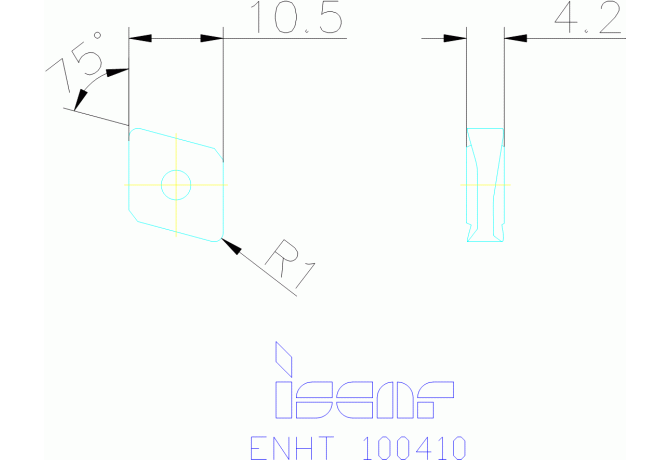

ENHT 100410 IC908

Артикул: 5604501

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CECC Cutting edge condition code

T - Chamfered

COATN Coating / Покрытие

TiAlN

COMPC Company code

IS - Iscar

DIN

IS-77068254102342

EPSR Insert included angle

75 Degree

FamilyProducts

Toroidal Bull Nose Peripherally Ground Inserts with 4 Cutting Edges

GRDMFG Grade manufacturers designation

IC908

IC Inscribed circle diameter

10.5 mm

ID Technical product number

5604501

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 / J441

ISISO ISO property

ISO

IS$$77068254102342

ISYC Subclass

201-03 - Rhombic insert

LOC-03 ISO

IS$$77068254102342

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IS-77068254102342

Name Identifying order number

ENHT 100410 IC908

RE Corner radius

1 mm

S Insert thickness

4.2 mm

Working process

No working processes available
