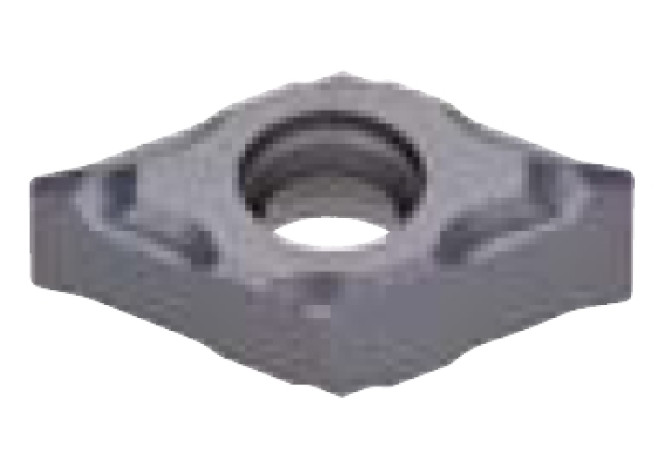

DXGU070304R-SS GT530

Артикул: DXGU070304R-SS GT530

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

CBMD Chip breaker manufacturers designation

COMPC Company code

TT - Tungaloy

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

2.7 mm

Delivery state valid from

4/1/2013

DIN

DX0703 3R

EPSR Insert included angle

55 Degree

FamilyProducts

55° Rhombic insert DXGU-SS

GAN Insert rake angle

30 Degree

GRD2ND Standard designation of the grade 2nd application

HT-K20

GRDMFG Grade manufacturers designation

GT530

GRDPRIO Standard designation of the grade main application

HT-P15

IC Inscribed circle diameter

6.35 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

DX0703 3R

Materials

P,K

Name Identifying order number

DXGU070304R-SS GT530

RE Corner radius

0.4 mm

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

DXGU070304R-SS

STDDESAnsi Standard designation ANSI

DXGU221R-SS

TCINS Tolerance class insert

Working process

DDA - External turning
