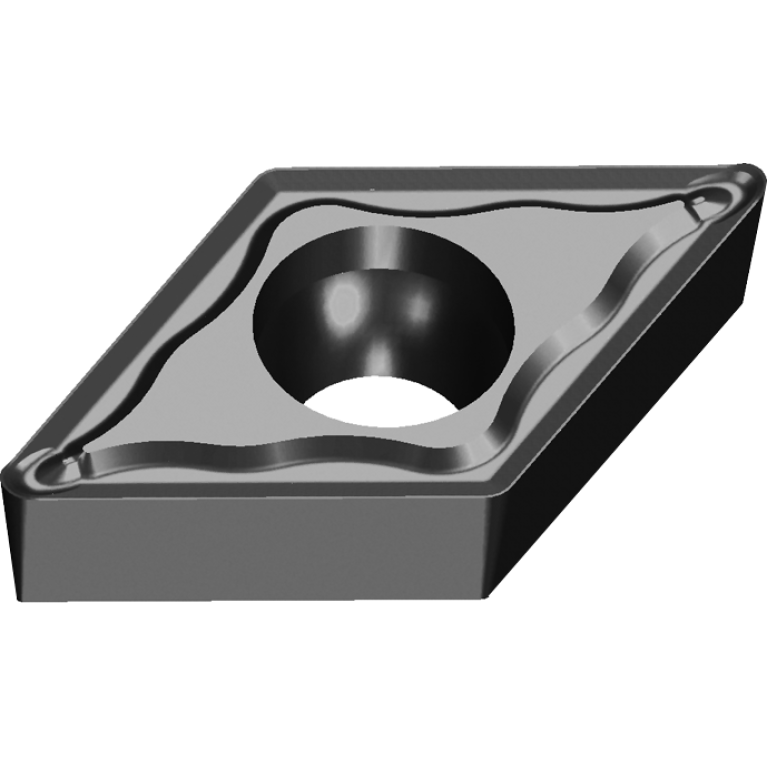

DPGT11T308-SF YNG151

Артикул: DPGT11T308-SF YNG151

В наличии

В корзину

Описание

Характеристики

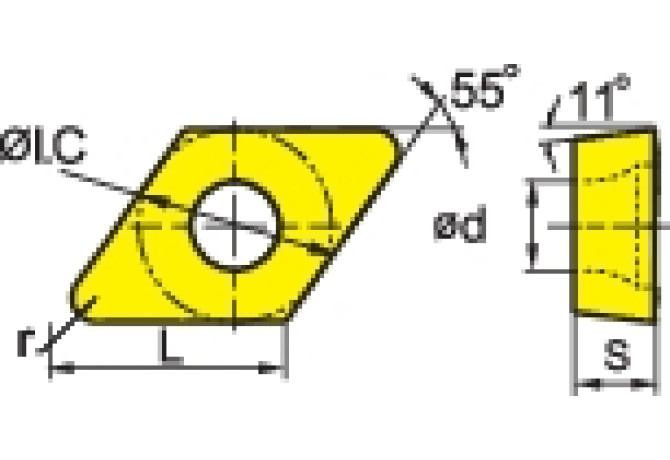

AN Clearance angle major

11 Degree

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

ohne

COMPC Company code

ZCC - ZCC Cutting Tools

D1 Fixing hole diameter

4.4 mm

Delivery state valid from

0.0231 kg

DIN

DP11T3083N

EPSR Insert included angle

55 Degree

FamilyProducts

DP** positive insert

GRDMFG Grade manufacturers designation

YNG151

GRDPRIO Standard designation of the grade main application

P05-P20

IC Inscribed circle diameter

9.525 mm

ID Identifying order number

DPGT11T308-SF YNG151

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

11.6 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

DP11T3083N

RE Corner radius

0.8 mm

S Insert thickness

3.97 mm

S1 Insert thickness total

3.97 mm

TCINS Tolerance class insert

Working process

No working processes available
