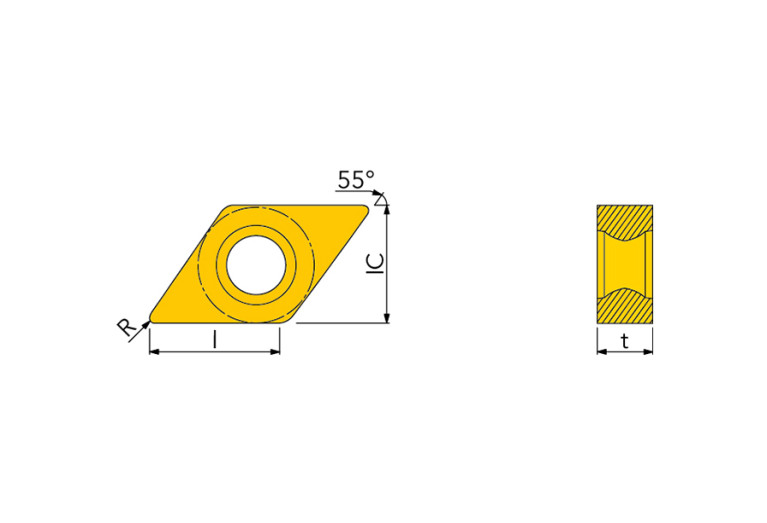

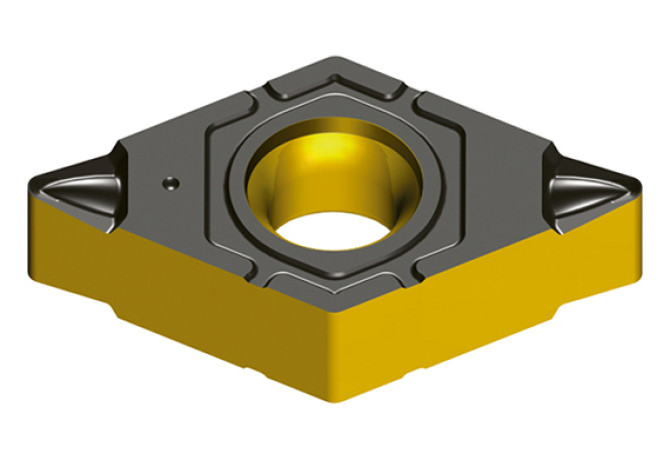

DNMX 080304 FGP TT8115

Артикул: 6330391

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

TiCN+Al2O3+TiN

COMPC Company code

IL - Ingersoll

Delivery state

LL - Stock limited

DIN

DN0803047N

EPSR Insert included angle

55 Degree

FamilyProducts

insert, Negativ 55° Insert for finishing and medium machining

GRDMFG Grade manufacturers designation

TT8115

GRDPRIO Standard designation of the grade main application

P05-P20

IC Inscribed circle diameter

7 mm

ID Technical product number

6330391

IFS Insert mounting style code

7 - Prismatic clamping, concave

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

LE Cutting edge effective length

1 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

DN0803047N

Name Identifying order number

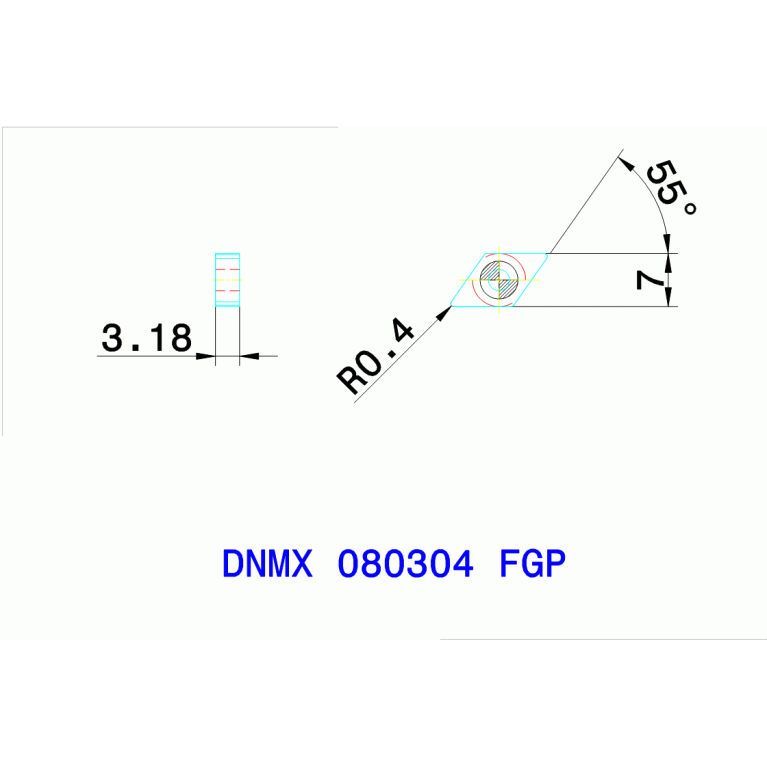

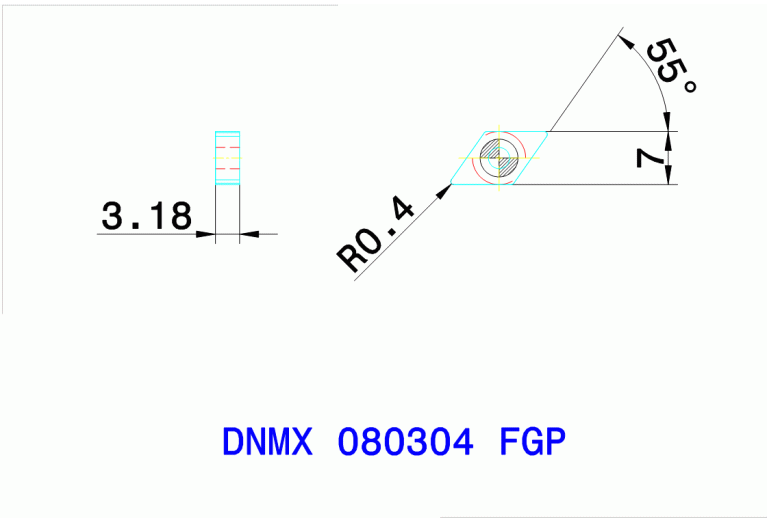

DNMX 080304 FGP TT8115

RE Corner radius

0.4 mm

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

DNMX080304P

TCINS Tolerance class insert

Working process

No working processes available
