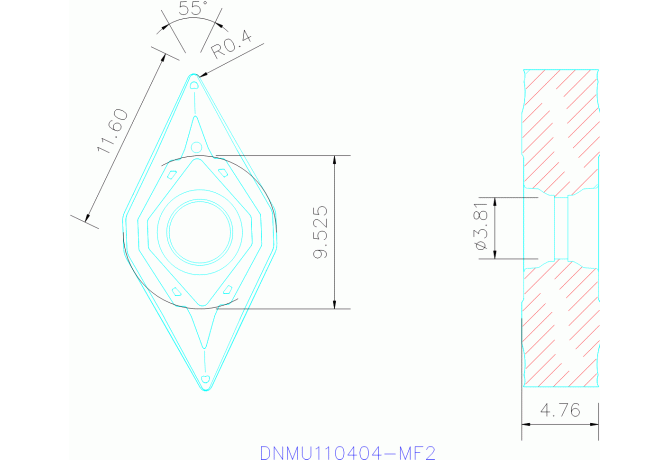

DNMU110404-MF2 CMP

Артикул: 02543699

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

CBMD Chip breaker manufacturers designation

MF2

COMPC Company code

SO - SECO Tools

DIN

DN1104043N

EPSR Insert included angle

55 Degree

FamilyProducts

DNMU110404-MF2 CMP

GRDMFG Grade manufacturers designation

CMP

ID Technical product number

02543699

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

DN1104043N

MIID Master insert identification

DNMU110404 CMP

Name Identifying order number

DNMU110404-MF2 CMP

NameAnsi Identifying order number inch alternative

DNMU331-MF2 CMP

STDDES Standard designation

DNMU110404

STDDESAnsi Standard designation ANSI

DNMU331

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.003 kg
