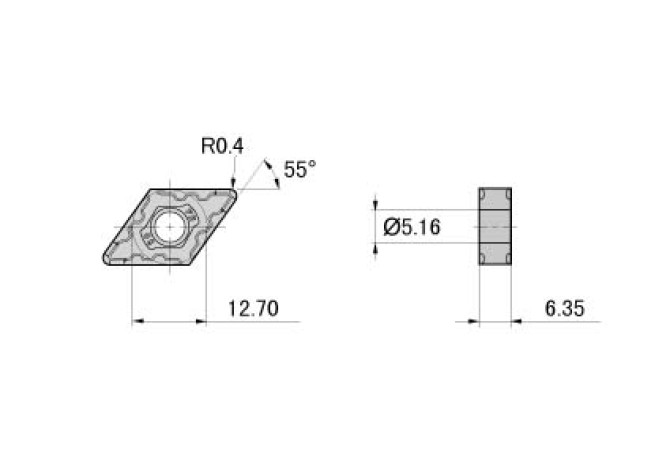

DNMG150604-FS VP25N

Артикул: DNMG150604-FS VP25N

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

ANN Clearance angle minor

0 Degree

AS Clearance angle wiper edge

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

VP-Miracle

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5.16 mm

Delivery state valid from

4/1/2022

DIN

DN1506042N

EPSR Insert included angle

55 Degree

FamilyProducts

INSERT, TURNING, COATED CERMET

GAN Insert rake angle

16 Degree

GRD2ND Standard designation of the grade 2nd application

HT-P10

GRD3RD Standard designation of the grade 3rd application

HT-P20

GRDMFG Grade manufacturers designation

VP25N

GRDPRIO Standard designation of the grade main application

HT-P01

IC Inscribed circle diameter

12.7 mm

ID Technical product number

DNMG150604-FS VP25N

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

15.5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

DN1506042N

Name Identifying order number

DNMG150604-FS VP25N

RE Corner radius

0.4 mm

S Insert thickness

6.35 mm

S1 Insert thickness total

6.35 mm

STDDES Standard designation

DNMG150604

STDDESAnsi Standard designation ANSI

DNMG441

TCINS Tolerance class insert

Working process

DDA - External turning,DDI - Internal turning

WT Weight of item

0.11 kg
