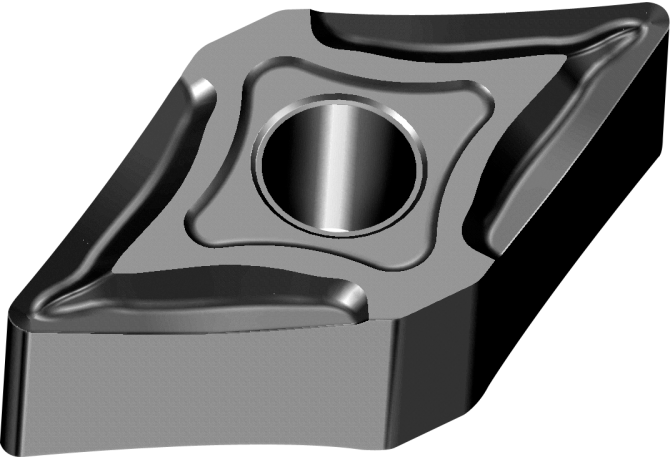

DNMG150604-EF YBG202

Артикул: DNMG150604-EF YBG202

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

nc-TiAlN

COMPC Company code

ZCC - ZCC Cutting Tools

D1 Fixing hole diameter

5.16 mm

Delivery state valid from

0.1126 kg

DIN

DN1506042N

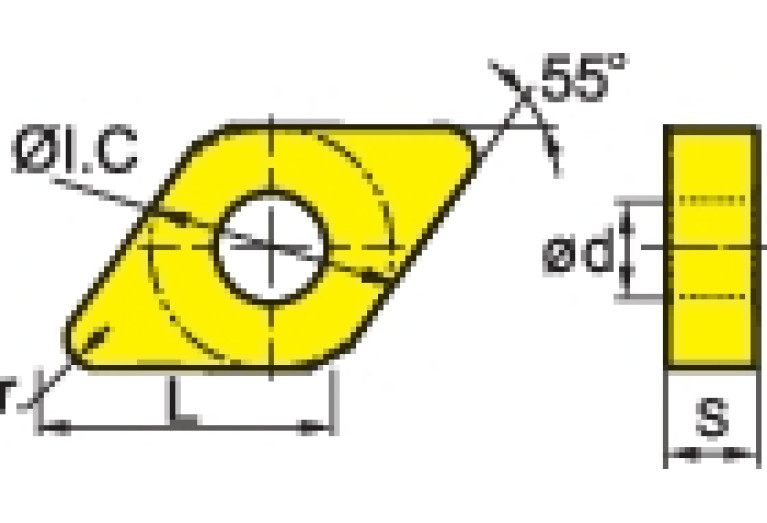

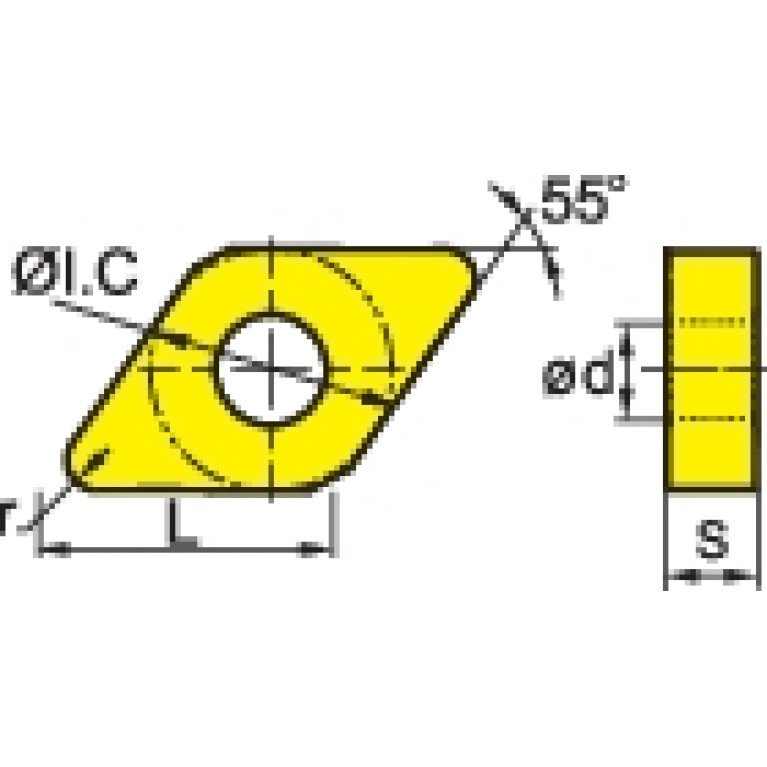

EPSR Insert included angle

55 Degree

FamilyProducts

DN** negative insert

GRD2ND Standard designation of the grade 2nd application

M10-M25

GRDMFG Grade manufacturers designation

YBG202

GRDPRIO Standard designation of the grade main application

P10-P30

IC Inscribed circle diameter

12.7 mm

ID Identifying order number

DNMG150604-EF YBG202

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

15.5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

DN1506042N

RE Corner radius

0.4 mm

S Insert thickness

6.35 mm

S1 Insert thickness total

6.35 mm

TCINS Tolerance class insert

Working process

No working processes available
