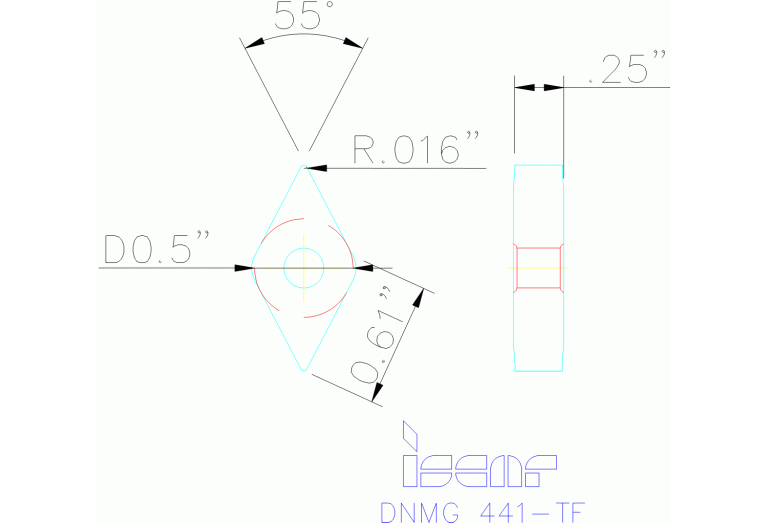

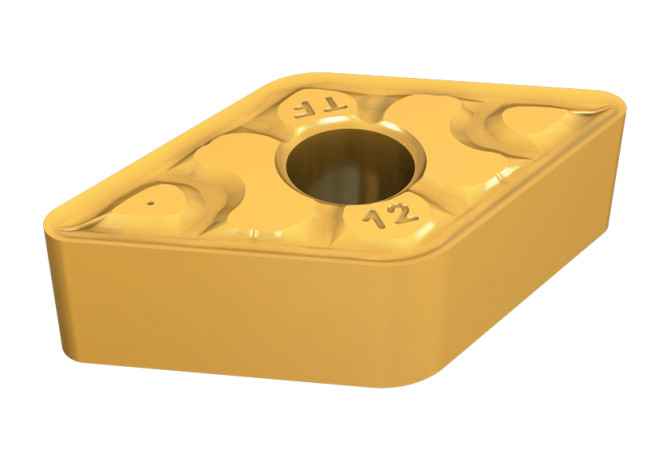

DNMG 150604-TF IC6025

Артикул: 5509929

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

E - Rounded

COATN Coating / Покрытие

TiCN+Al2O3+TiN

COMPC Company code

IS - Iscar

Delivery state valid from

4/1/2022

DIN

DN1506042N

EPSR Insert included angle

55 Degree

FamilyProducts

Double-Sided 55° Rhombic Inserts for Machining a Wide Range of Materials at Medium Cutting Conditions

GRDMFG Grade manufacturers designation

IC6025

IC Inscribed circle diameter

12.7 mm

ID Technical product number

5509929

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$DN1506042NB$$04

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

15.5 mm

LOC-03 ISO

ISO$DN1506042NB$$04

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

DN1506042N

Name Identifying order number

DNMG 150604-TF IC6025

RE Corner radius

0.4 mm

S Insert thickness

6.35 mm

Working process

No working processes available

WT Weight of item

0.02 kg
