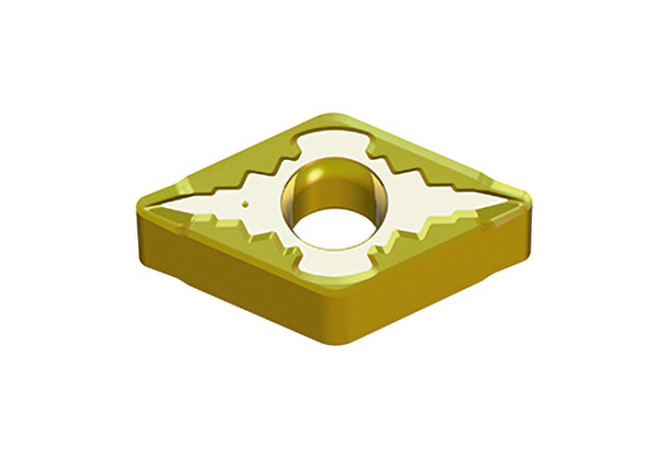

DNMG 150604 EA TT9225

Артикул: 5522175

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

TiCN+Al2O3+TiN

COMPC Company code

IL - Ingersoll

Delivery state

LL - Stock limited

DIN

DN1506042N

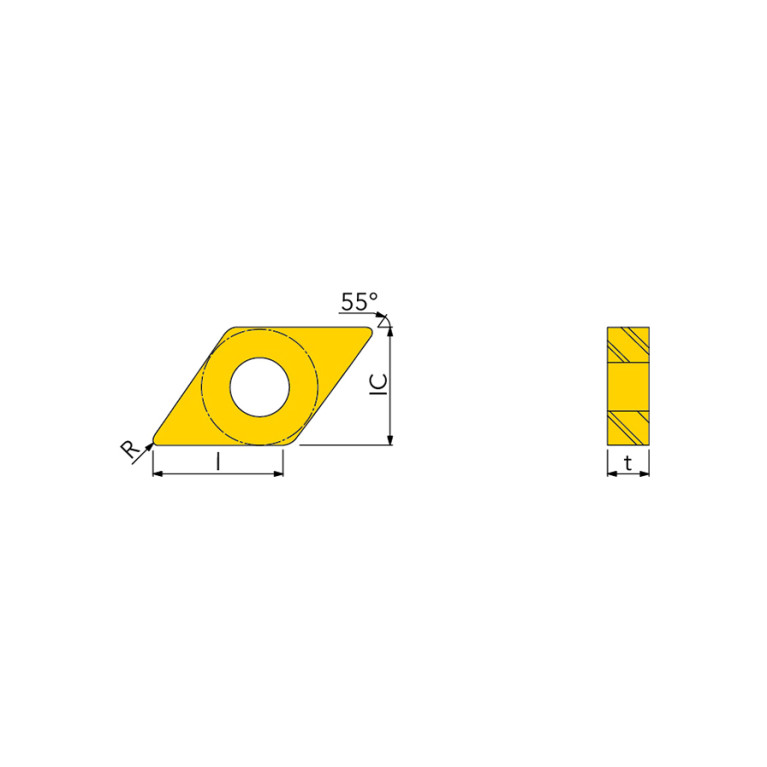

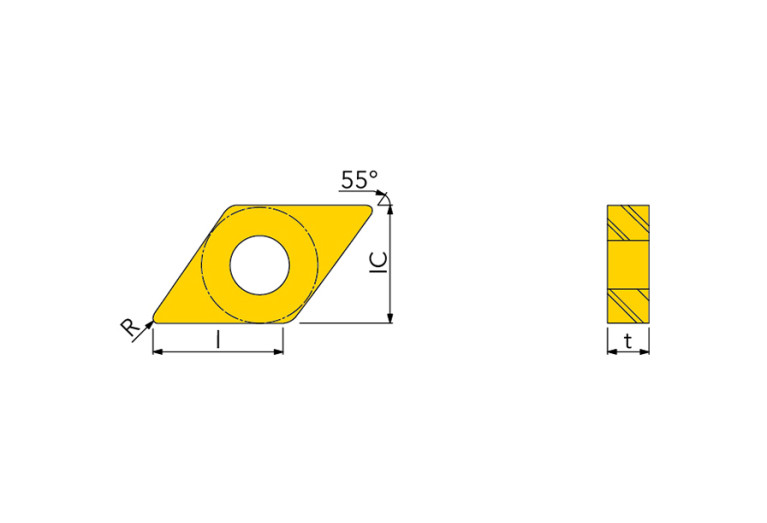

EPSR Insert included angle

55 Degree

FamilyProducts

insert, Negative 55° rhombic inserts for finishing / exotic material

GRD2ND Standard designation of the grade 2nd application

M15-M30

GRD3RD Standard designation of the grade 3rd application

S15-S30

GRDMFG Grade manufacturers designation

TT9225

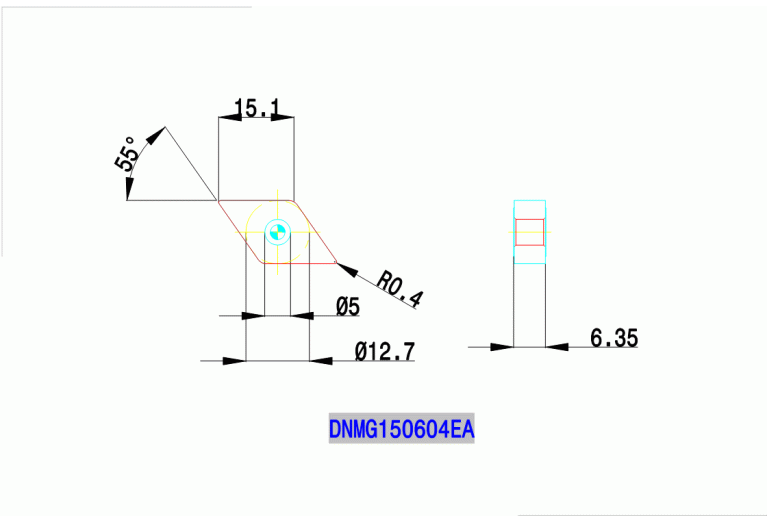

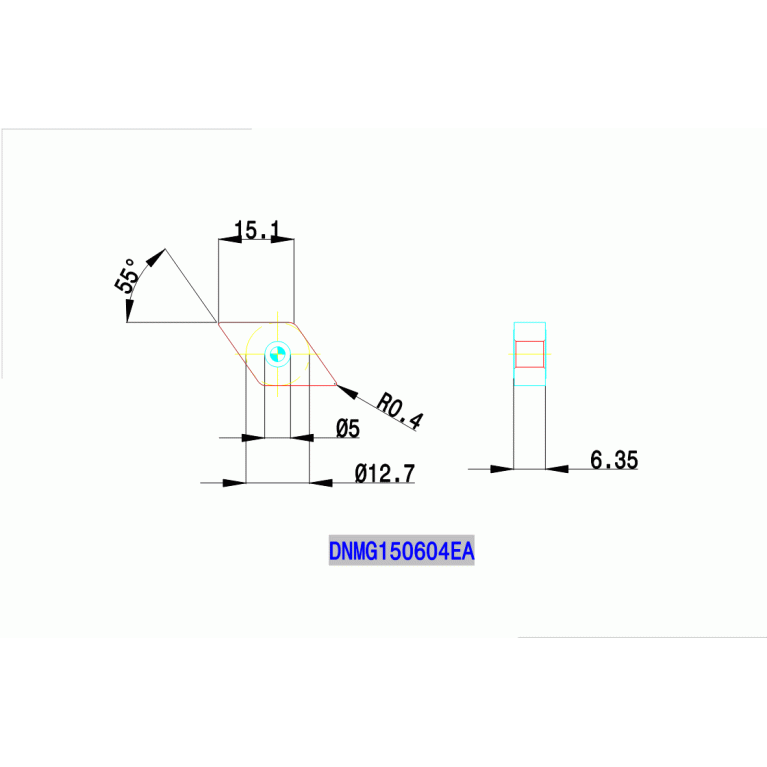

IC Inscribed circle diameter

12.7 mm

ID Technical product number

5522175

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

15.1 mm

LE Cutting edge effective length

0.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

DN1506042N

Name Identifying order number

DNMG 150604 EA TT9225

RE Corner radius

0.4 mm

S Insert thickness

6.35 mm

S1 Insert thickness total

6.35 mm

STDDES Standard designation

DNMG150604

STDDESAnsi Standard designation ANSI

DNMG441

TCINS Tolerance class insert

Working process

No working processes available
