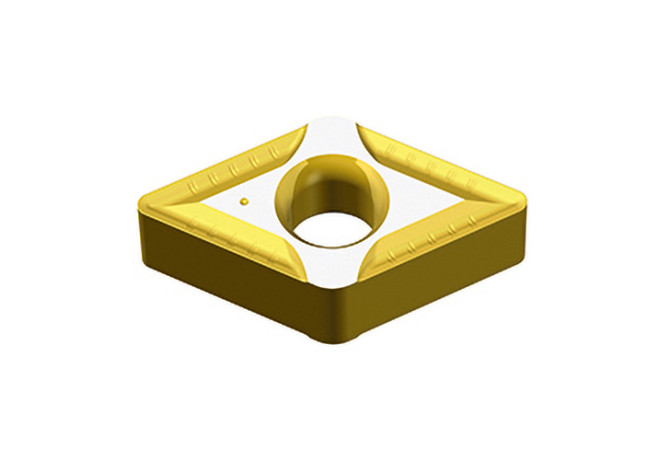

DNMG 130508 MK TT3020

Артикул: 6324568

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

0 - Without chip breaker

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

AlTiN/TiN

COMPC Company code

IL - Ingersoll

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

7/1/2024

DIN

DN1305082N

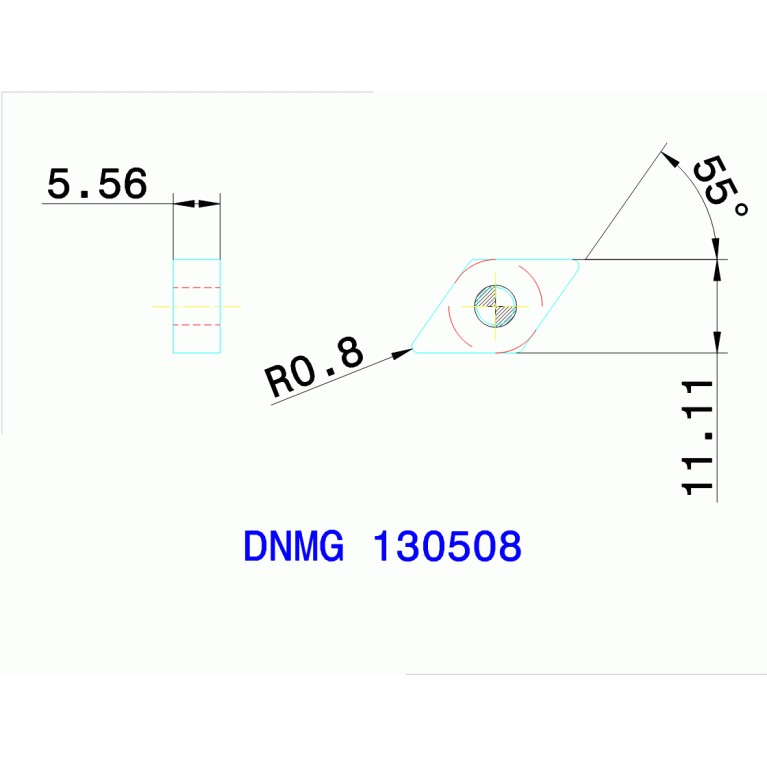

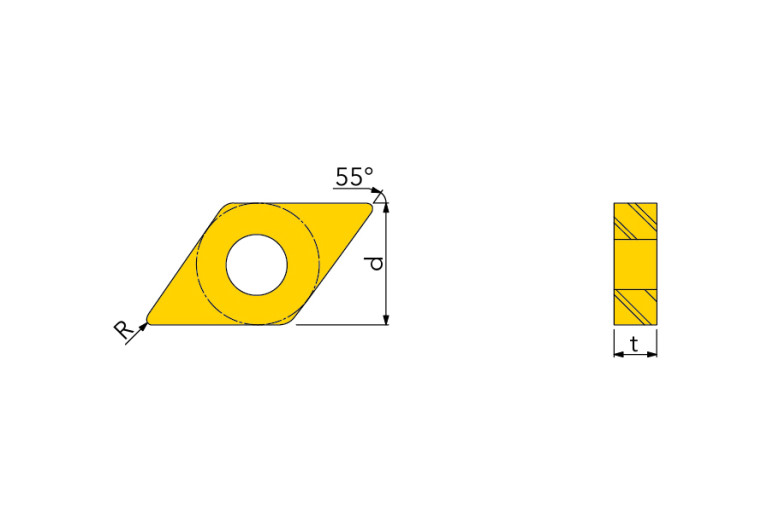

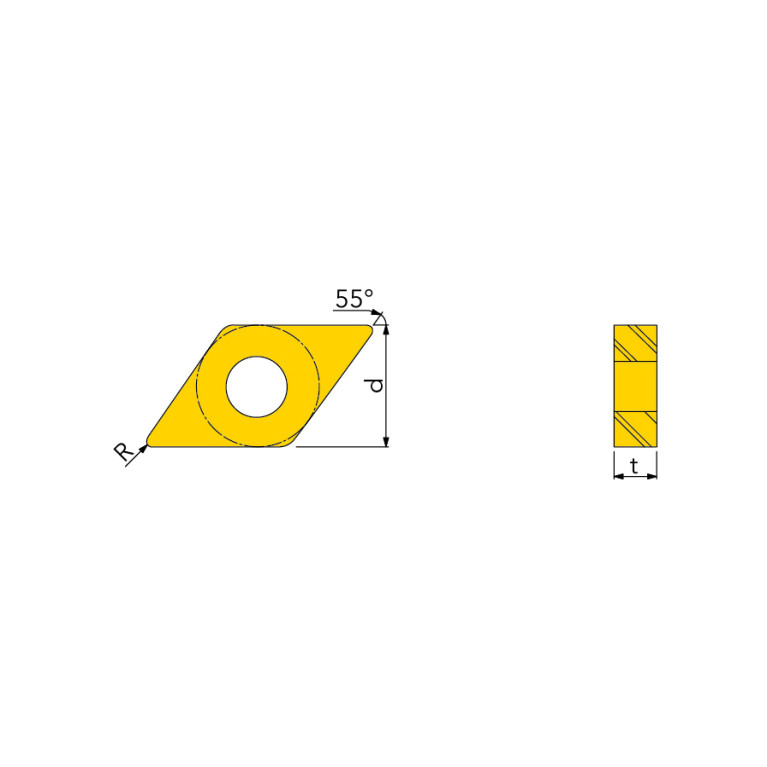

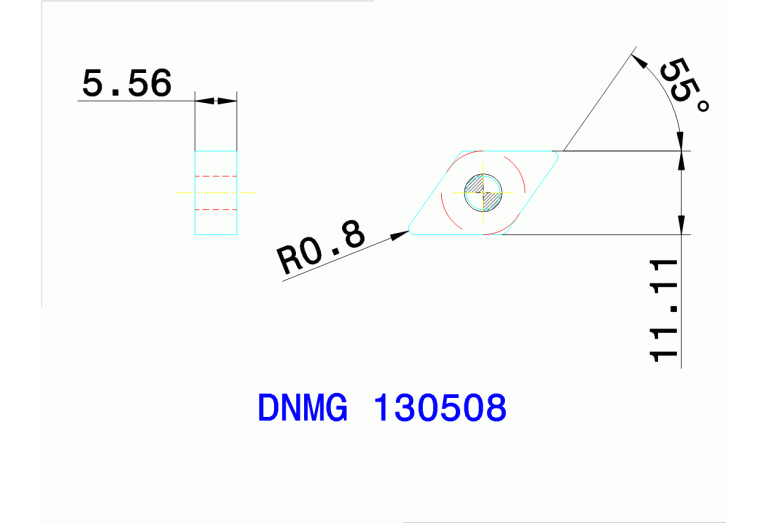

EPSR Insert included angle

55 Degree

FamilyProducts

insert, Negative 55° rhombic inserts for stainless steel and heat resistant material

GRD2ND Standard designation of the grade 2nd application

S10-S30

GRDMFG Grade manufacturers designation

TT3020

GRDPRIO Standard designation of the grade main application

M10-M30

IC Inscribed circle diameter

11.11 mm

ID Technical product number

6324568

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

LE Cutting edge effective length

2.2 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

DN1305082N

Materials

Name Identifying order number

DNMG 130508 MK TT3020

RE Corner radius

0.8 mm

S Insert thickness

5.56 mm

S1 Insert thickness total

5.56 mm

STDDES Standard designation

DNMG130508

TCINS Tolerance class insert

Working process

No working processes available
