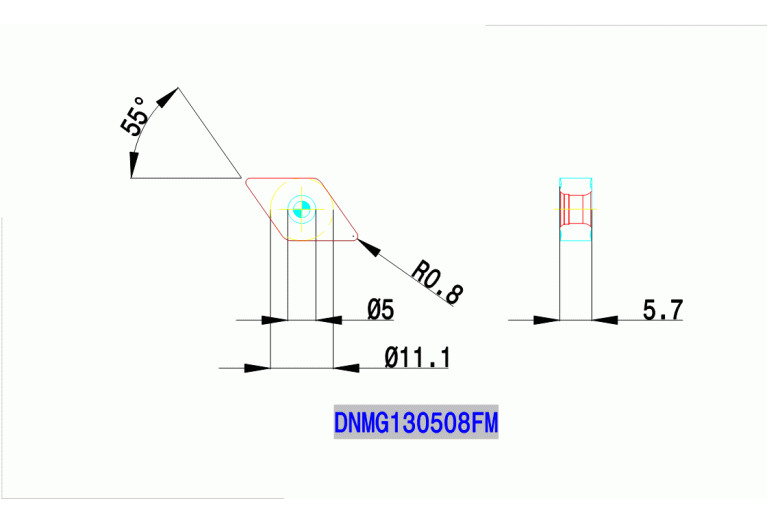

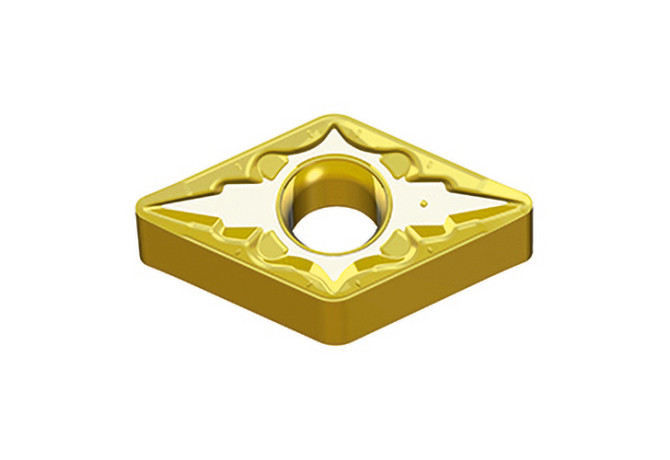

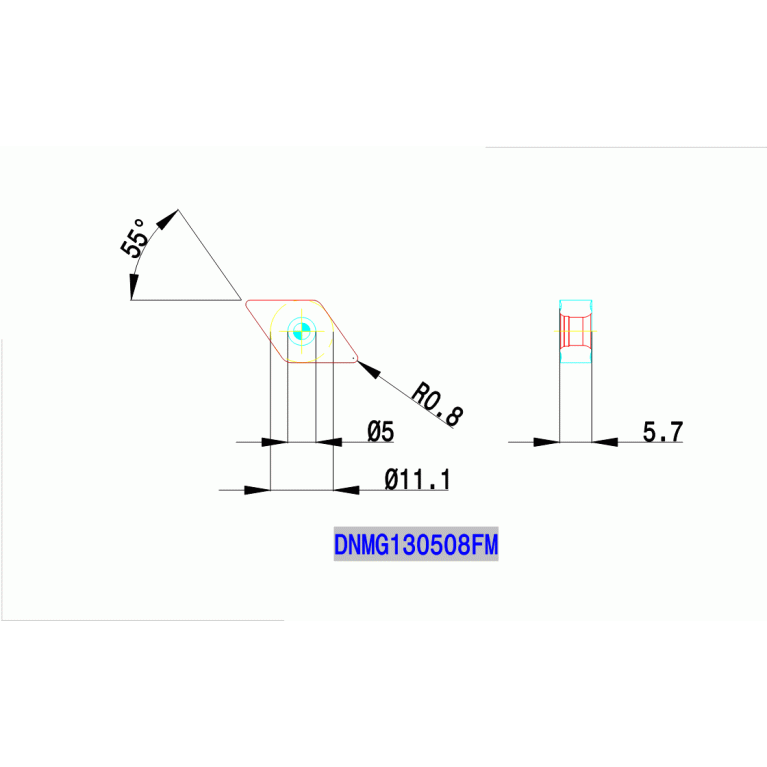

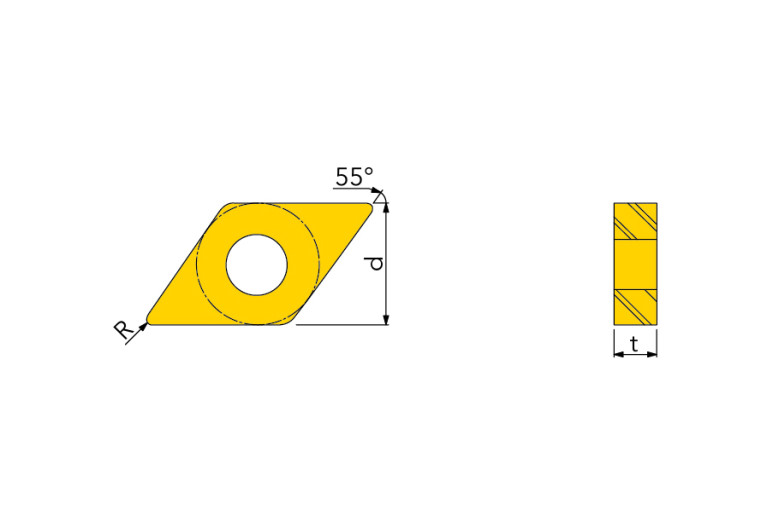

DNMG 130508 FM CT3000

Артикул: 6118172

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

0 - Without chip breaker

COMPC Company code

IL - Ingersoll

Delivery state

NL - Discontinued

DIN

DN1305082N

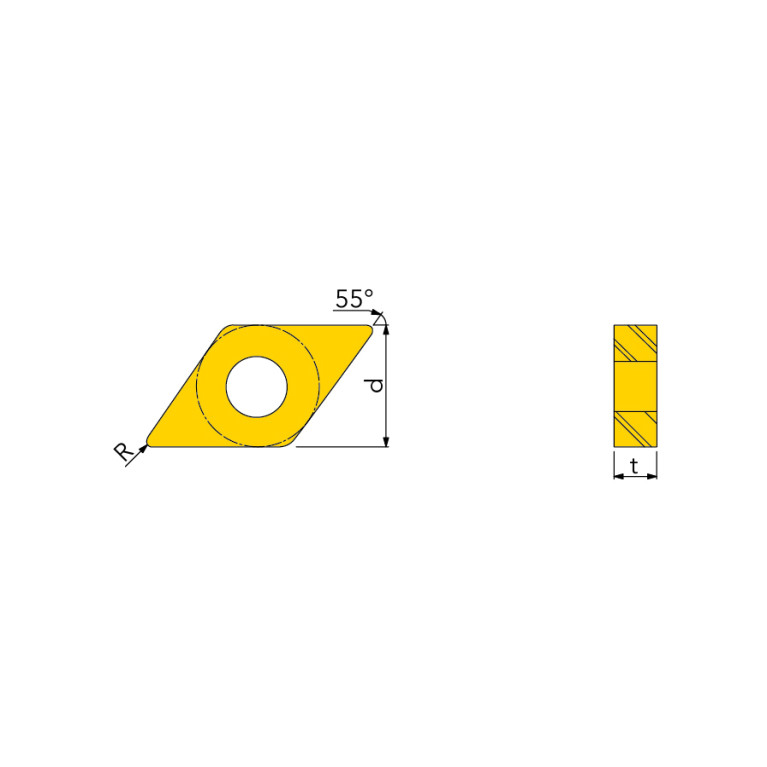

EPSR Insert included angle

55 Degree

FamilyProducts

insert, Negative 55° rhombic inserts for finishing / for medium roughing

GRD2ND Standard designation of the grade 2nd application

M10-M20

GRD3RD Standard designation of the grade 3rd application

K10-K20

GRDMFG Grade manufacturers designation

CT3000

GRDPRIO Standard designation of the grade main application

P10-P20

IC Inscribed circle diameter

11.11 mm

ID Technical product number

6118172

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

LE Cutting edge effective length

1 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

DN1305082N

Name Identifying order number

DNMG 130508 FM CT3000

RE Corner radius

0.8 mm

S Insert thickness

5.56 mm

S1 Insert thickness total

5.56 mm

STDDES Standard designation

DNMG130508

TCINS Tolerance class insert

Working process

No working processes available
